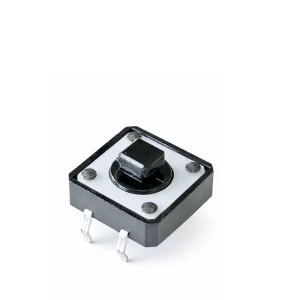

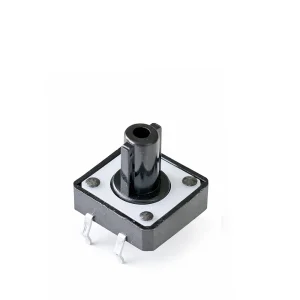

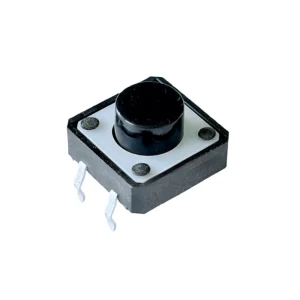

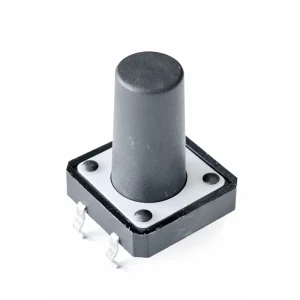

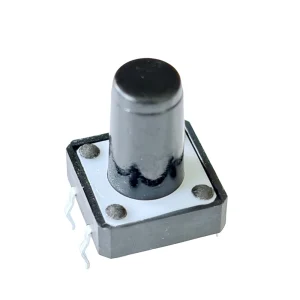

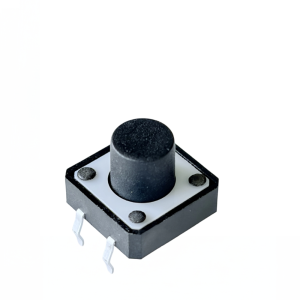

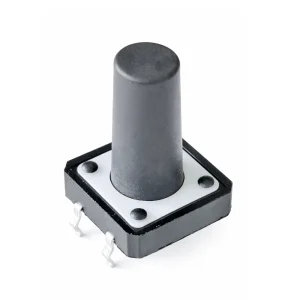

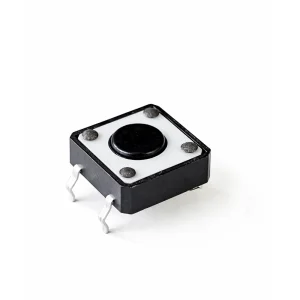

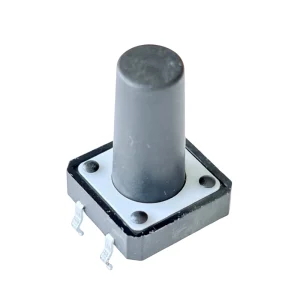

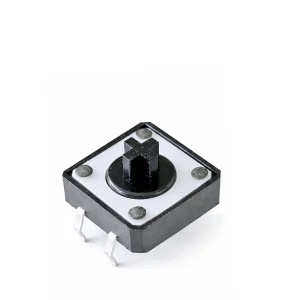

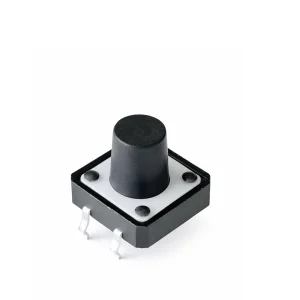

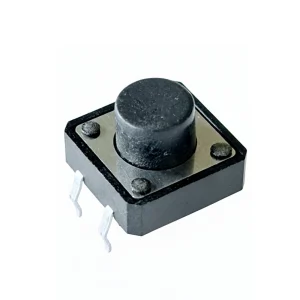

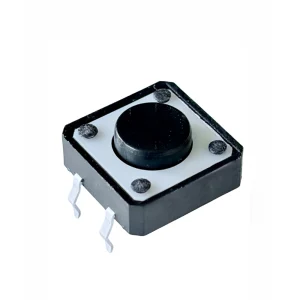

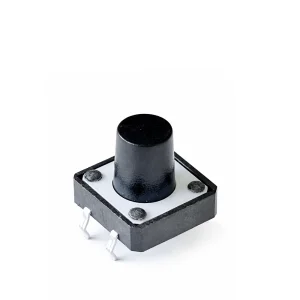

12x12mm Tact switch through hole
While the 6mm version is the "standard," the 12x12mm Tactile Switch is its heavy-duty sibling. Designed for applications where a larger physical presence, increased stability, and a more substantial "press" are required, this switch is a staple in industrial controls and robust consumer interfaces.
Because of its larger footprint, it offers a wider plunger surface area, making it significantly easier to actuate with a finger or to fit with custom-molded plastic key-caps or knobs.
Key Specifications
| Feature | Details |
|---|---|
| Dimensions | 12.0mm x 12.0mm (Base) |
| Mounting Type | Through-Hole (THT / 4-Pin) |
| Actuation Force | Typically 160gf or 250gf (Commonly firmer than smaller switches) |
| Travel Distance | 0.3mm to 0.5mm |
| Contact Rating | 50mA @ 12V DC (Standard) |
| Insulation Resistance | 100MΩ min. at 100V DC |
| Mechanical Life | 100,000+ Cycles |
Why Choose the 12x12mm over the 6x6mm?
- Mechanical Strength: The larger footprint and thicker pins provide superior "shear strength." If a user is likely to press the button aggressively, the 12mm version is much less likely to snap off the PCB.
- Key-cap or Knob Compatibility: Most standard square and round snap-on key-caps are designed specifically for the 12mm plunger size, allowing you to color-code or label your interface easily.
- Ergonomics: For devices operated while wearing gloves or for users with limited dexterity, the larger target area is a significant UX (User Experience) improvement.
- Heat Dissipation: While still a low-current component, the larger body handles the heat of manual "thick-wire" soldering better than miniature variants.
Pin Configuration & Layout
The 12x12mm switch typically utilizes a 4-pin SPST (Single Pole, Single Throw) Normally Open (NO) configuration.
- Stability: The four corners provide a rock-solid foundation on the PCB.
- Internal Bridge: Just like the 6mm version, pins on the same side are internally connected. This allows you to use the switch as a "bridge" in your circuit design to simplify PCB routing.
- Note on Footprints: While the pins are spaced wider than the 6mm version, they are still generally compatible with standard 2.54mm (0.1") grid perf-boards, though they will occupy more "real estate."
Common Applications
- Home Appliances: Control panels for washing machines, dishwashers, and ovens.
- Automotive: Dashboard controls and overhead lighting switches.
- Arcade/Gaming: Large, satisfying buttons for DIY arcade cabinets or MIDI controllers.
- Test Equipment: Power-on cycles for oscilloscopes, multimeters, and laboratory power supplies.
