RJ45 8P8C 90-Degree PCB Modular Jacks | 1x1, 1x2, and 1x4 Ports by Pran Electronics Pvt. Ltd.
In the era of high-speed data transmission and Industrial IoT, reliable physical connectivity is the backbone of every network. The RJ45 8P8C 90-Degree PCB Mounting Modular Jacks by Pran Electronics Pvt. Ltd. are engineered for high-performance Ethernet applications, offering a versatile range of configurations to suit various hardware designs.
Available in Single (1x1), Dual (1x2), and Quad (1x4) port arrays, these connectors are the preferred choice for networking equipment, telecommunications, and industrial automation control systems.
Versatile Configurations for Every PCB Design
Pran Electronics understands that space and shielding requirements vary by project. Our modular jack series is available in several formats:

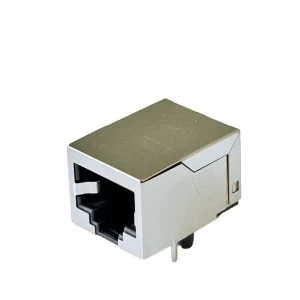

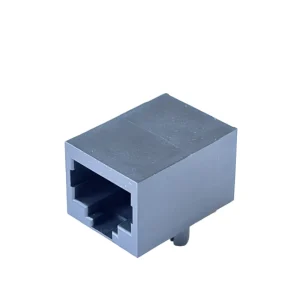

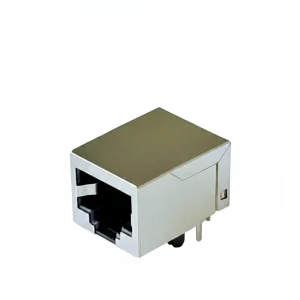

- 1x1 Port (Single): Ideal for compact devices, routers, and embedded systems.

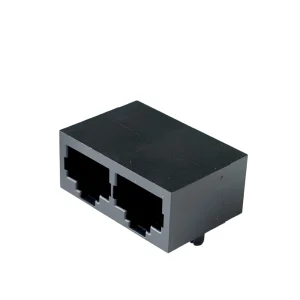

- 1x2 Port (Dual Stack): Optimized for medium-density networking hardware.

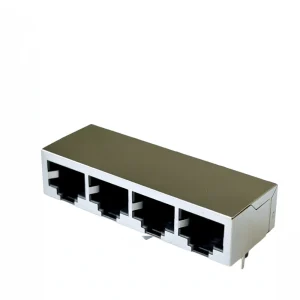

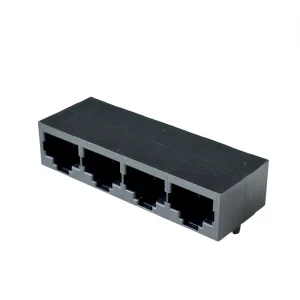

- 1x4 Port (Quad): Designed for high-density switches, hubs, and multi-channel controllers.
- Shielded vs. Unshielded: Choose Unshielded for cost-effective internal connections or Shielded (Metal Tabbed) versions to protect against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) in noisy industrial environments.
Key Features & Benefits
- Right-Angle (90-Degree) Orientation: The side-entry design reduces vertical height, allowing for low-profile enclosures and efficient cable management.
- Standard 8P8C Interface: Fully compatible with all standard RJ45 Ethernet cables (Cat5e, Cat6).
- Gold-Plated Contacts: Features high-grade selective gold plating over nickel to ensure superior conductivity and long-term resistance to oxidation.
- Precision PCB Mounting: Designed with sturdy solder pins for Through-Hole (THT) mounting, ensuring a secure mechanical bond that withstands repetitive plugging.
- High-Temperature Housing: Constructed from UL 94V-0 rated thermoplastic, capable of withstanding standard wave soldering processes.
- Made in India Excellence: Manufactured by Pran Electronics Pvt. Ltd., ensuring high-quality localized production that meets international telecommunication standards.
Key Features & Build Quality
Technical Specifications
| Feature | Specification |
|---|---|
| Positions/Contacts | RJ45 8P8C (8 Positions, 8 Contacts) |
| Mounting Orientation | 90-Degree / Right Angle / Side Entry |
| Mounting Type | Through-Hole Technology (THT) |
| Current Rating | 1.5A |
| Voltage Rating | 125V AC |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ |
| Dielectric Strength | 1000V AC (RMS, 60Hz/1 min) |
| Housing Material | High-Temp UL 94V-0 Thermoplastic |
| Compliance | RoHS Compliant |
Primary Applications
The Pran RJ45 series is a staple in diverse industries across the globe:
Networking & Telecom: Routers, switches, modems, and patch panels.
Industrial Automation: PLCs, HMIs, and Ethernet-enabled sensors.
Smart Metering: Data Concentrator Units (DCUs) and AMI infrastructure.
Consumer Electronics: Smart TVs, gaming consoles, and set-top boxes.
Computing: Server motherboards and network interface cards (NICs).
Why Source from Pran Electronics?
Choosing Pran Electronics Pvt. Ltd. means partnering with an ISO-certified manufacturer that prioritizes precision and reliability. Our RJ45 modular jacks are rigorously tested for mechanical durability (mating cycles) and electrical stability, ensuring your end product remains connected under the most demanding conditions.
Customizable Features: Options for integrated LEDs (Green/Yellow) and various shield tab configurations are available upon request.
Compliance: RoHS and REACH compliant components.
Applications: Modems, WiFi routers, network connectors.
