Push Switch

For low-voltage DC electronics, these miniature PCB-mount push switches are the industry standard for reliability and space-saving design. Commonly referred to as "Self-Lock" or "Momentary" tactile switches, they are engineered for low-current signals in everything from consumer electronics to industrial bread boarding.

Product Overview

These sub-miniature switches are designed for Through-Hole Technology (THT) mounting. They feature a high-precision internal spring mechanism that ensures a definitive tactile click, providing the user with clear physical feedback. Available in three standardized footprints, they offer a range of travel distances and mechanical strengths to fit your specific PCB layout.

Available Form Factors

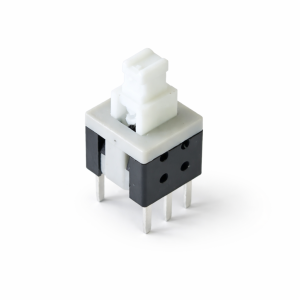

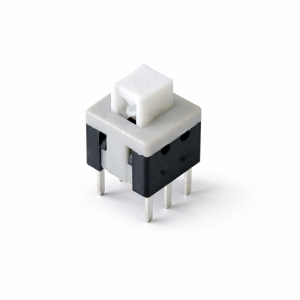

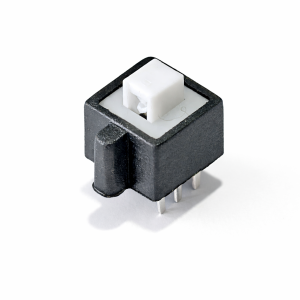

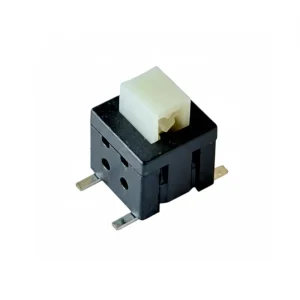

5.8 x 5.8mm: The "Ultra-Compact" choice. Best for high-density boards, wearables, or handheld remote controls where every millimeter counts.

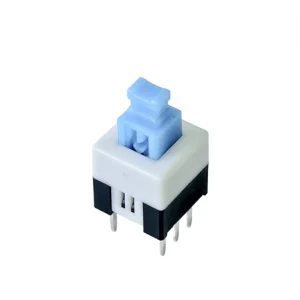

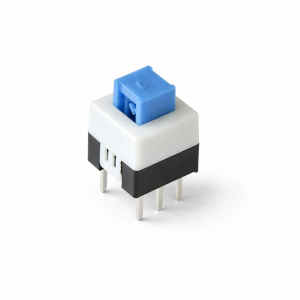

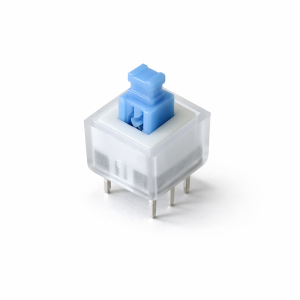

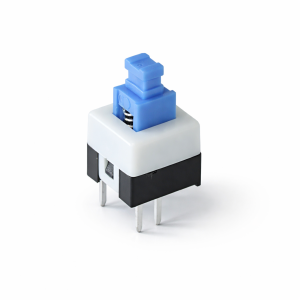

7.0 x 7.0mm: The "Industry Standard." This is the most versatile size, offering a perfect balance between a small footprint and ease of manual soldering.

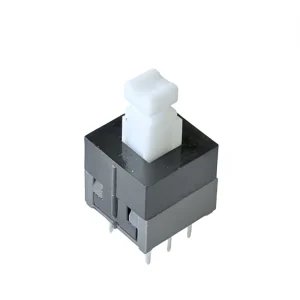

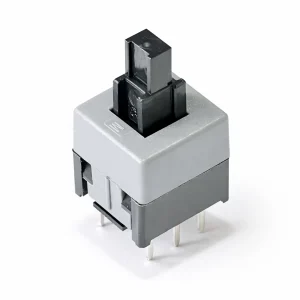

8.5 x 8.5mm: The "Heavy-Duty" variant. Featuring a slightly larger plunger surface and more robust housing, it's ideal for control panels where users might apply more forceful pressure.

Parameter	Standard	Value
Voltage	Rating	12V to 30V DC
Current	Rating	0.1A to 0.5A
Contact	Resistance	100 mΩ max.
Insulation	Resistance	100 MΩ at 250V DC
Dielectric	Strength	250V AC (50Hz / 1 minute)
Operating	Temp	-25 to +70 °C
Mechanical	Life	10,000 cycles

Mechanical Configurations

1. Momentary (Non-Locking)

Action: The circuit stays closed only as long as the button is depressed.
Mechanism: Returns to the "UP" position immediately upon release.
Application: Reset buttons, signal triggers, or micro controller interrupts.

2. Latching (Self-Locking)

Action: The first press locks the plunger down and completes the circuit; the second press releases the lock and breaks the circuit.
Mechanism: Features a "push-on, push-off" mechanical heart track.
Application: Main power toggles for battery-operated devices, LED mode selection.

Key Features

High-Quality Materials: Silver-plated contacts ensure low contact resistance and prevent oxidation over time.
Standardized Pin Pitch: Designed to fit standard $2.54\text{mm}$ (0.1") pitch prototyping boards and breadboards (with slight leg forming).
Tactile Feedback: A sharp, audible "click" confirms the switch has been successfully actuated.
Heat Resistant: Durable PBT/PA66 housing prevents melting during standard soldering procedures.
