RJ45 LED modular jack

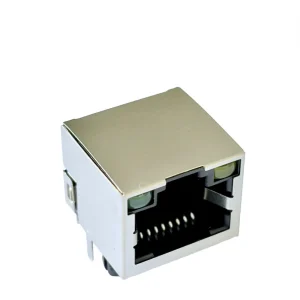

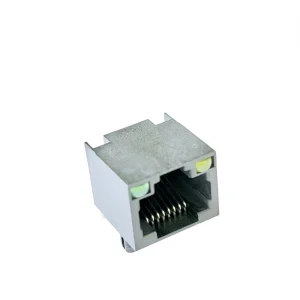

Tab-Up RJ45 Modular Jack with LEDs | Pran Electronics Pvt. Ltd.

Maximize your PCB efficiency with the Tab-Up RJ45 Modular Jack with Integrated LEDs by Pran Electronics Pvt. Ltd. Engineered for high-speed networking, this space-saving connector features a "Tab-Up" latch orientation, making it ideal for low-profile chassis and bottom-mounted PCB designs.

Key Features:

  • Integrated Diagnostics: Dual high-visibility LEDs (Green/Yellow) provide instant "Link" and "Activity" status without needing extra board-mounted components.
  • Space-Saving Design: Combining the RJ45 port and status indicators into a single 8P8C housing reduces your BOM and simplifies PCB routing.
  • Superior Shielding: Equipped with a full metal nickel-plated shield and grounding tabs for maximum EMI/RFI protection.
  • Industrial Durability: Features gold-plated contacts and UL 94V-0 high-temperature thermoplastic for reliable performance in harsh environments.
  • Make in India: High-quality localized manufacturing for smart meters, routers, and industrial IoT gateways.

Perfect for: Networking switches, Industrial PLCs, Smart Metering (DCUs), and Telecom equipment.

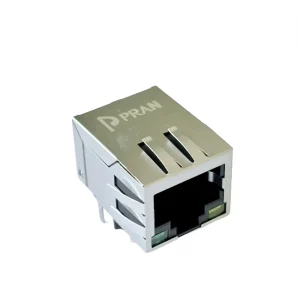

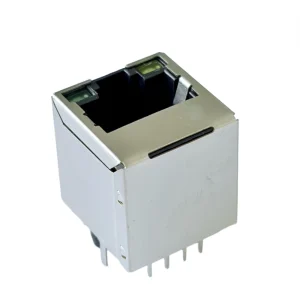

Ethernet RJ45 Jack with Internal Magnetics | Pran Electronics Pvt. Ltd.

Streamline your networking hardware with the RJ45 Modular Jack with Integrated Magnetics (MagJack) by Pran Electronics Pvt. Ltd. This high-performance connector integrates essential Ethernet filtering and isolation components directly into the RJ45 housing, providing a "plug-and-play" solution for stable data transmission.

Key Features:

  • Integrated Filtering: Built-in transformers and common-mode chokes suppress EMI/RFI, ensuring clean signal integrity for 10/100/1000 Base-T applications.
  • Superior Isolation: Provides critical galvanic isolation (up to 1500V AC) to protect sensitive microcontrollers and PHY chips from voltage spikes.
  • Space-Saving Design: Eliminates the need for discrete magnetic components on the PCB, reducing board complexity and shortening the signal path.
  • Enhanced Shielding: Features a robust metal shield with grounding tabs to meet stringent FCC and CE electromagnetic compatibility requirements.
  • Industrial Reliability: Manufactured in India with gold-plated contacts for long-term durability in smart meters, routers, and industrial gateways.

Ideal for: Smart Metering (DCUs), Industrial IoT, Network Interface Cards (NICs), and Embedded Systems.
