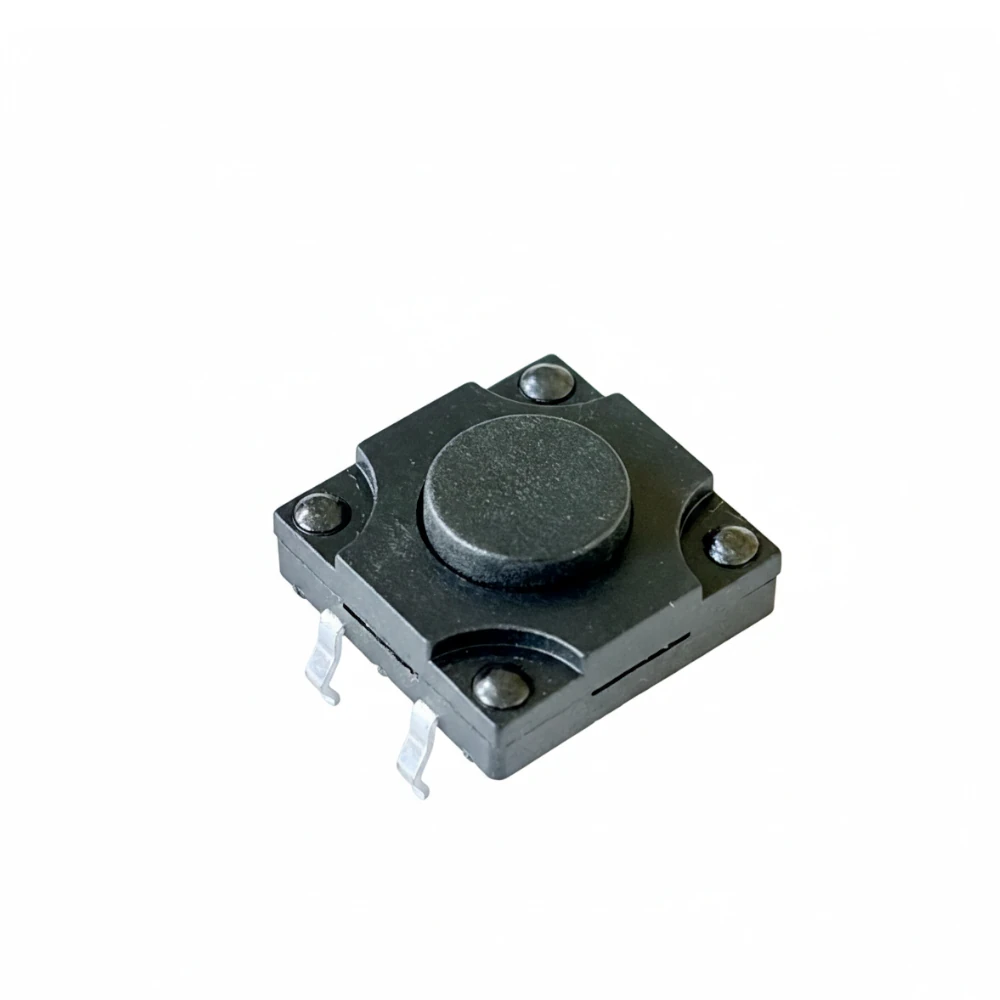

The 12x12mm Sealed Waterproof Tactile Switch is the “heavy-duty” choice for engineers designing interfaces that must survive extreme conditions. While smaller 6mm switches are common, the 12mm square footprint provides superior mechanical stability and a larger surface area, making it ideal for industrial controls, automotive systems, and outdoor equipment.

Equipped with an internal silicone rubber membrane and protective film, these switches are typically IP67-rated, ensuring they remain dust-tight and functional even after temporary immersion in water.

Why the 12x12mm Sealed Variant is Superior

• Mechanical Resilience: The 12mm base offers a much larger soldering footprint (for SMD) or wider pin spacing (for THT). This provides incredible “shear strength,” preventing the switch from being ripped off the PCB if a user presses it with extreme force or at an angle.

• Keycap Versatility: The larger 12mm plunger is designed to support heavy-duty snap-on keycaps. In waterproof applications, these caps can be paired with an external rubber overlay to provide a “double-layer” of environmental protection.

• Process-Sealed Construction: These switches are built to withstand Automated Wave Soldering and Aqueous Cleaning. You can wash the entire PCB assembly to remove flux without worrying about water or chemicals entering the switch housing.

• Ergonomic Feedback: Because of the larger internal metal dome, the 12x12mm series provides a very distinct, “heavy” tactile click that can be felt even through thick industrial work gloves.

Internal Architecture

The 12x12mm waterproof switch utilizes a Multi-Point Sealing method:

1. Top Seal: A silicone boot or film covers the plunger and is bonded to the high-temp plastic housing.

2. Base Seal: The four terminals insert molded to prevent “wicking” of moisture or soldering flux into the contact chamber.

3. Silver Contacts: To prevent the “static-click” or oxidation common in high-humidity environments, the internal dome and leads are heavily plated.

Common Applications

• Agricultural & Construction Machinery: Control panels for tractors, excavators, and cranes that are exposed to rain, mud, and dust.

• Automotive Exterior: Tailgate release buttons, door handle sensors, and external lighting controls.

• Marine Electronics: GPS plotters, fish-finders, and deck-mounted communications equipment.

• Public Access Terminals: Outdoor ATMs, parking meters, and EV charging stations where durability and weatherproofing are non-negotiable.

• Medical Equipment: Devices that require frequent hosing down or intensive liquid sterilization.

Comparison: Sealed vs. Non-Sealed (12x12mm)
