5.2x5.2 SMD tact switch

5.2×5.2 SMD tact switch

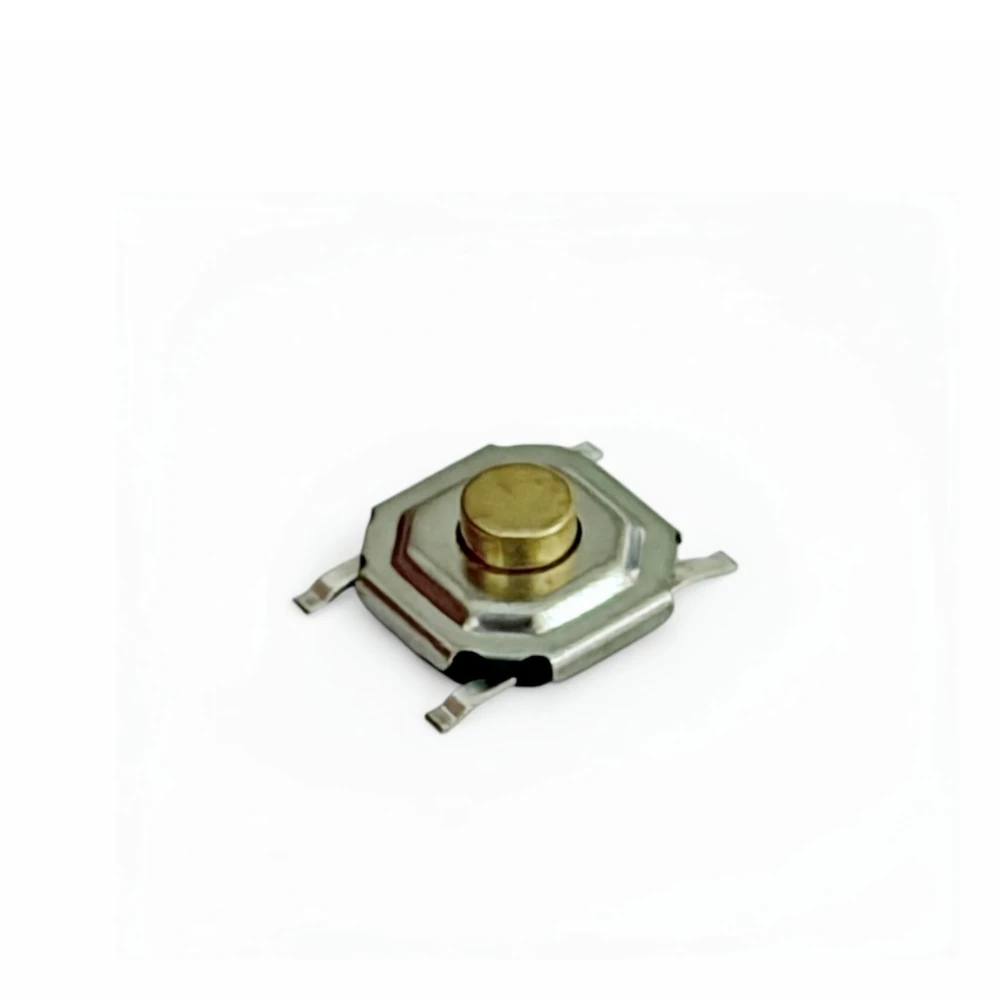

Product Overview: 5.2×5.2mm SMD Tactile Switch

Short description: 5.2×5.2mm ultra compact SMD surface mount Tact switch

Size:
5.2×5.2mm in various heights
Function:
Function: Momentary ON (Non Lock), SPST switch
Rating:
50mA, 12V DC
Part code:
SMD-5252-05-XX, replace XX with height
Enquiry
Data Sheet
Category:

The 5.2×5.2mm SMD Tactile Switch is the “ultra-compact” workhorse of the surface-mount world. Occupying a middle ground between the tiny 3x6mm rectangular switches and the standard 6x6mm square switches, the 5.2mm series is specifically designed for low-profile consumer electronics where every tenth of a millimeter matters.

Its square footprint and incredibly low height (often as low as 0.8mm to 1.5mm) make it the primary choice for modern interface panels, wearable tech, and sleek handheld devices.

Feature Details
Dimensions 5.2mm x 5.2mm (Base)
Mounting Type Surface Mount (SMD / SMT)
Height Options 0.8mm, 1.5mm, 2.0mm, up to 3.0mm
Actuation Force 160gf or 260gf (Crisp, short-travel click)
Travel Distance 0.2mm to 0.3mm (Ultra-short travel)
Contact Rating 50mA @ 12V DC
Operating Life 100,000 to 500,000 Cycles

Engineering & Design Advantages

  • Ultra-Low Profile: Unlike through-hole switches that stand tall off the board, the 5.2mm SMD series is often available in “flat-top” configurations. This allows designers to create devices that are thin enough to fit in a pocket or on a wrist.

  • Solder Pad Efficiency: The “Gull-Wing” or “J-Lead” terminals are tucked closely to the body, minimizing the overall PCB “keep-out” zone while still providing enough surface area for a strong mechanical bond.

  • Dust & Water Resistance: Many 5.2×5.2mm models feature an IP67-rated silicone membrane or film seal. This makes them ideal for outdoor devices or kitchen appliances where moisture and dust are constant threats.

  • High-Speed Assembly: These are almost exclusively supplied in Tape & Reel packaging, allowing pick-and-place machines to populate boards at maximum speeds without the orientation errors common in larger components.

Internal Circuitry & Logic

The 5.2×5.2mm switch is a Single Pole, Single Throw (SPST), Normally Open (NO) device.

  • 4-Pin Configuration: While it only performs a simple “on/off” function, the four pins provide maximum stability against “rocking” when a user presses the edge of the button.

  • Internal Bridge: Pins are typically paired (1-2 and 3-4). Pressing the button bridges these two pairs together.

Common Applications

  • Wearables: Smartwatches, fitness trackers, and hearing aids.

  • Mobile Accessories: Bluetooth earbuds (charging case buttons), power banks, and portable gimbals.

  • Automotive Interior: Overhead map lights, steering wheel toggles, and keyless entry fobs.

  • Medical Devices: Portable glucose monitors, digital thermometers, and pulse oximeters.

  • Home Automation: Smart light switches, thermostat interfaces, and security sensors.

Comparison: 5.2×5.2mm vs. 6x6mm SMD

Feature 5.2×5.2mm 6x6mm
Footprint Area ~27 $mm^2$ ~36 $mm^2$
Space Saving ~25% Reduction Standard
Height Typically Slimmer Typically Taller
Key cap Support Limited (Direct press) Wide range available
