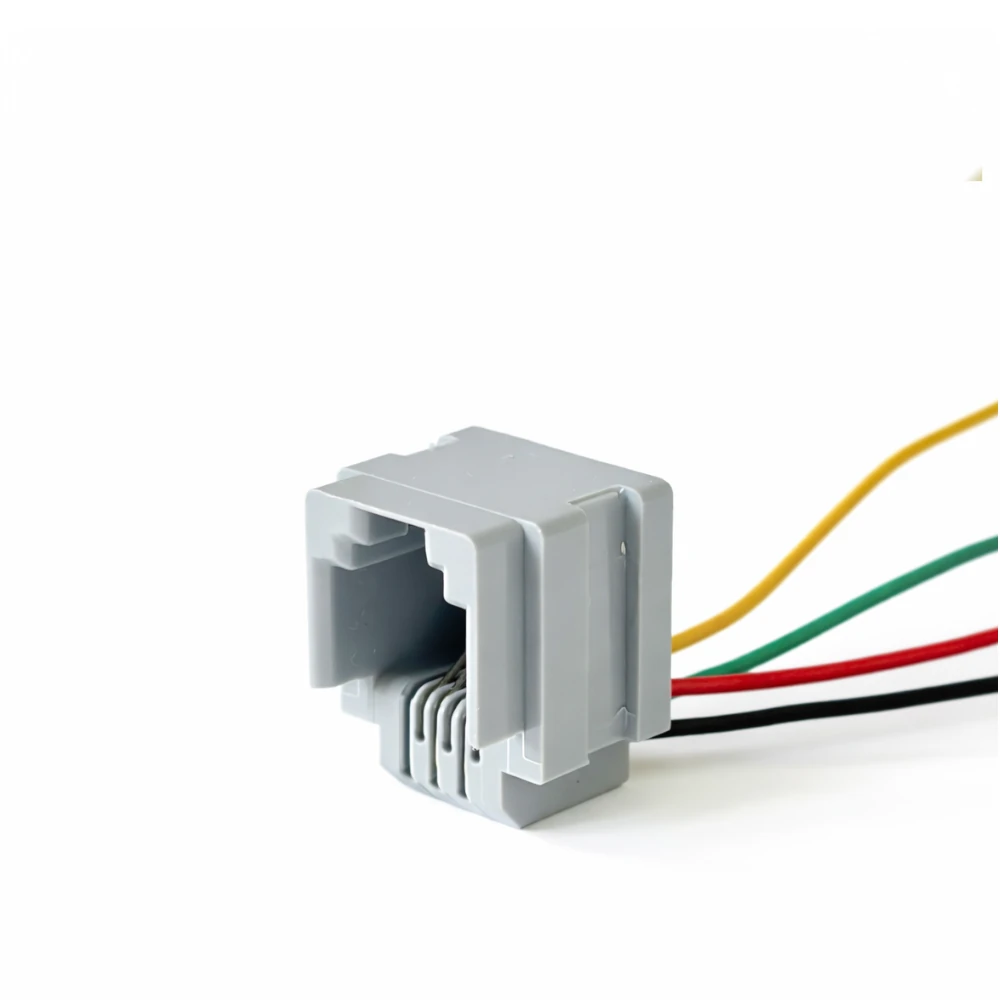

In the world of telecommunications and data networking, the integrity of a connection is only as good as the jack it plugs into. The JL-623K Modular Wire Jack, manufactured by Pran Electronics Pvt. Ltd., is a high-precision, PCB-mount connector designed for reliability, durability, and seamless signal transmission.

Commonly used in voice and data communication equipment, the JL-623K is engineered to meet international standards while being proudly Made in India.

Product Overview: The JL-623K Advantage

The JL-623K is a 6-position modular jack (often referred to as an RJ11/RJ12 style) designed for through-hole mounting on printed circuit boards. Its “wire jack” designation refers to its specialized internal contact structure, which ensures constant pressure against the modular plug, minimizing signal loss and noise.

• High-Integrity Contacts: Features gold-plated phosphor bronze contacts for superior conductivity and corrosion resistance.

• Robust Housing: Molded from high-grade, flame-retardant thermoplastics (UL 94V-0 rated) for maximum safety and mechanical strength.

• Standardized Footprint: Designed with industry-standard pin spacing for easy integration into existing PCB layouts.

Technical Specifications

Key Features & Build Quality

1. Gold-Plated Precision

The JL-623K utilizes gold-over-nickel plating on its contact surfaces. This ensures that even after hundreds of insertions, the connection remains free of oxidation, which is vital for maintaining low-voltage signal clarity in DSL and telecom lines.

2. Mechanical Stability

The housing is engineered with integrated PCB retention features (locating pegs), ensuring the jack stays perfectly aligned during the soldering process and remains rigid during heavy daily use.

3. RoHS & International Compliance

As an ISO 9001:2015-certified manufacturer, Pran Electronics ensures that the JL-623K is fully RoHS compliant. It meets the mechanical and electrical requirements for standardized modular connectors, ensuring compatibility with all standard RJ-series plugs.

Typical Applications

• Telecommunications: Telephone sets and fax machines.

• Networking Gear: Routers, modems, and residential gateways.

• Security Systems: Control panels for home security and fire alarm communicators.

• Industrial Automation: Interface ports for PLCs and data logging equipment.

• Point of Sale (POS): Credit card terminals and receipt printers.

Why Source JL-623K from Pran Electronics?

Pran Electronics Pvt. Ltd. brings decades of expertise in electro-mechanical component design. By choosing the JL-623K, you are opting for a connector that has been rigorously tested for mating force, contact retention, and environmental endurance.

• Expert Tooling: Our in-house mold design ensures zero-tolerance precision for the jack cavity, preventing “loose” connections.

• Quality Assurance: 100% inspection of contact alignment and plating thickness.

• Agile Supply Chain: Direct support from our Vadodara facility for rapid prototyping and bulk production.
