In the era of high-speed data transmission and compact hardware, the Low-Profile RJ45 8P8C Modular Jack from Pran Electronics Pvt. Ltd. is the ultimate solution for space-constrained networking applications. Engineered to provide full Ethernet functionality while minimizing vertical height, this through-hole PCB connector is the gold standard for slim-line routers, switches, and industrial IoT devices.
As a premier “Make in India” manufacturer, Pran Electronics delivers an ISO 9001:2015 certified product that combines a reduced footprint with the robust electrical performance required for modern networking standards.
Product Overview: Slim Design, Maximum Performance

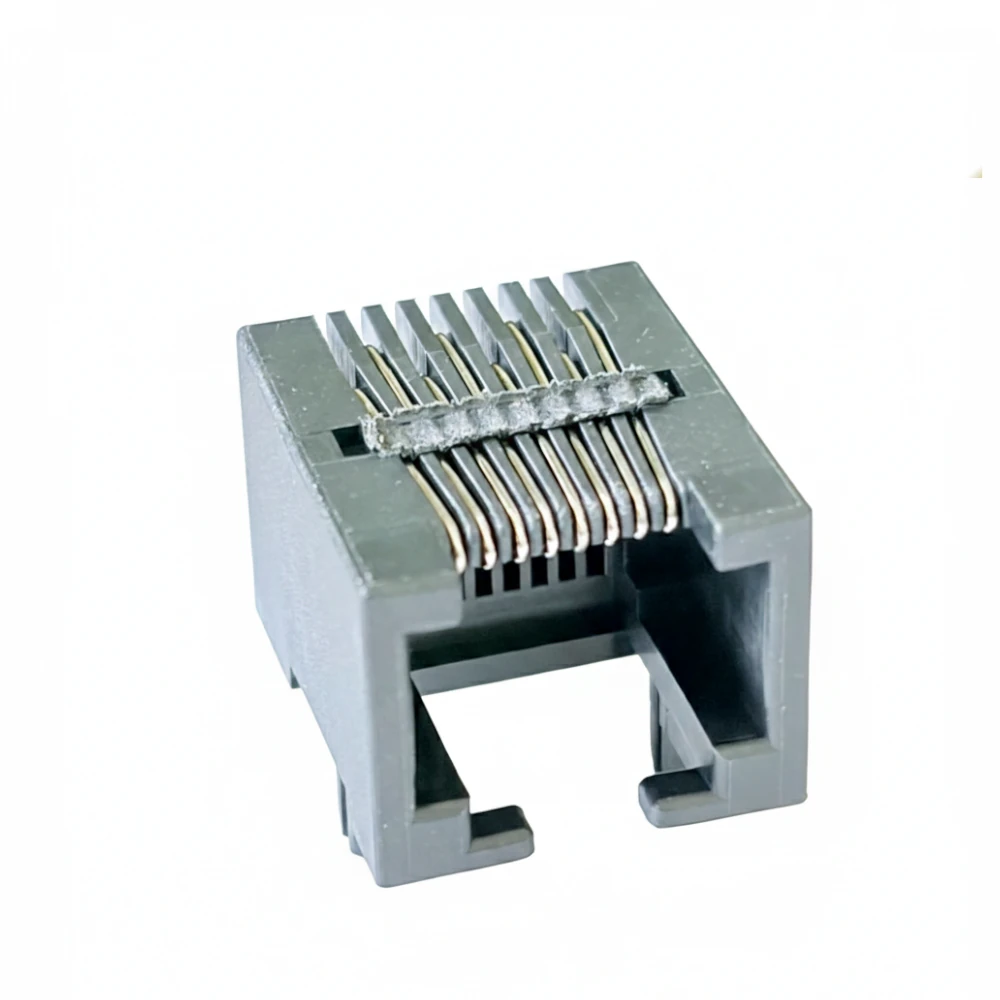

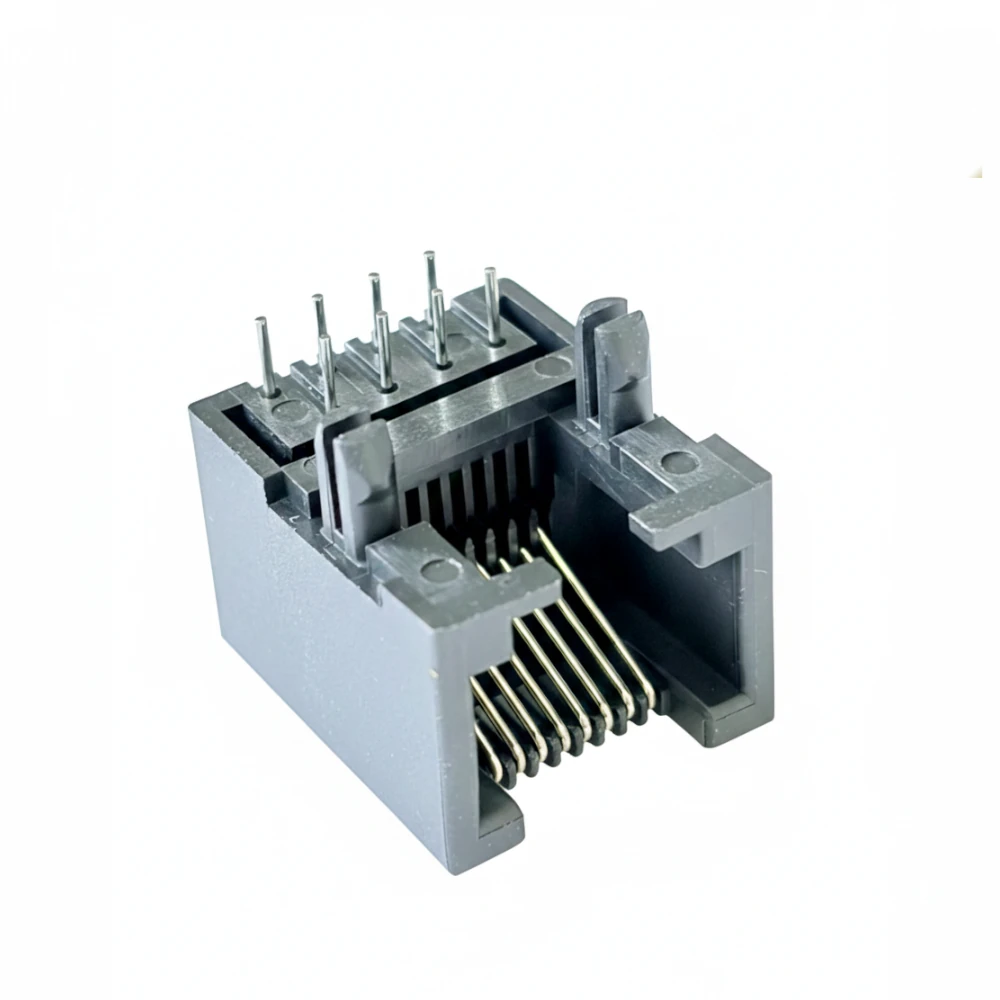

The Low-Profile 8P8C (8 Positions, 8 Contacts) modular jack is specifically designed for applications where board-to-enclosure clearance is minimal. By lowering the overall height of the housing, this RJ45 connector enables the design of sleeker, thinner electronic devices without sacrificing the mechanical integrity of the Ethernet port.
-
Ultra-Compact Height: Significantly lower profile than standard RJ45 jacks, making it ideal for 1U rack-mount equipment and handheld devices.
-
Side-Entry (Right-Angle) Orientation: Designed for seamless integration onto the edge of a PCB for easy external cable access.
-
Universal Compatibility: Fully compatible with standard Cat5e and Cat6 modular plugs, ensuring a secure, high-speed connection every time.
Technical Specifications
| Feature | Specification |
| Configuration | 8P8C (8 Positions, 8 Contacts) |
| Mounting Type | Right-Angle Through-Hole (THT) |
| Current Rating | 1.5 A |
| Voltage Rating | 125 {V AC |
| Contact Resistance | 20 m Ohms max. |
| Insulation Resistance | 500 M Ohms at 500V DC |
| Dielectric Strength | 1000 V AC (RMS, 60Hz/1 min) |
| Housing Material | High-Temp Thermoplastic (UL 94V-0) |
Key Features & Quality Engineering
1. High-Speed Signal Integrity
The contacts are manufactured from phosphor bronze and finished with various gold plating options. This ensures maximum conductivity and prevents oxidation, which is critical for maintaining high-speed data rates and minimizing packet loss in Ethernet circuits.
2. Robust Mechanical Retention
Despite its slim profile, the jack is equipped with integrated PCB mounting pegs. These pegs provide mechanical stability, absorbing the stress of repeated cable insertions and protecting the delicate solder joints from cracking or fatigue.
3. Industrial-Grade Durability
Built to last, our low-profile RJ45 jacks are rated for at least 750 mating cycles. The flame-retardant housing is designed to withstand the thermal stresses of wave soldering, ensuring consistent alignment during mass production.
Ideal Applications
-
Networking Hardware: Slim-line routers, access points, and network switches.
-
Industrial IoT: Compact gateways, DIN-rail controllers, and embedded sensors.
-
Telecommunications: VoIP phones and high-speed broadband modems.
-
Consumer Electronics: Smart TVs, gaming consoles, and home automation hubs.
-
Security & Surveillance: IP cameras and NVR (Network Video Recorder) systems.
The Pran Electronics Advantage
Based in Vadodara, Gujarat, India, Pran Electronics Pvt. Ltd. has over 25 years of expertise in delivering high-precision electro-mechanical components. When you source our Low-Profile RJ45 jacks, you benefit from:
-
RoHS Compliance: Environmentally safe and lead-free components.
-
Precision Tooling: In-house mold design ensures a perfect “click” fit for every plug.
-
Bulk Supply Stability: High-volume manufacturing capacity to support global OEM production timelines.
Streamline Your Design with Pran Electronics
