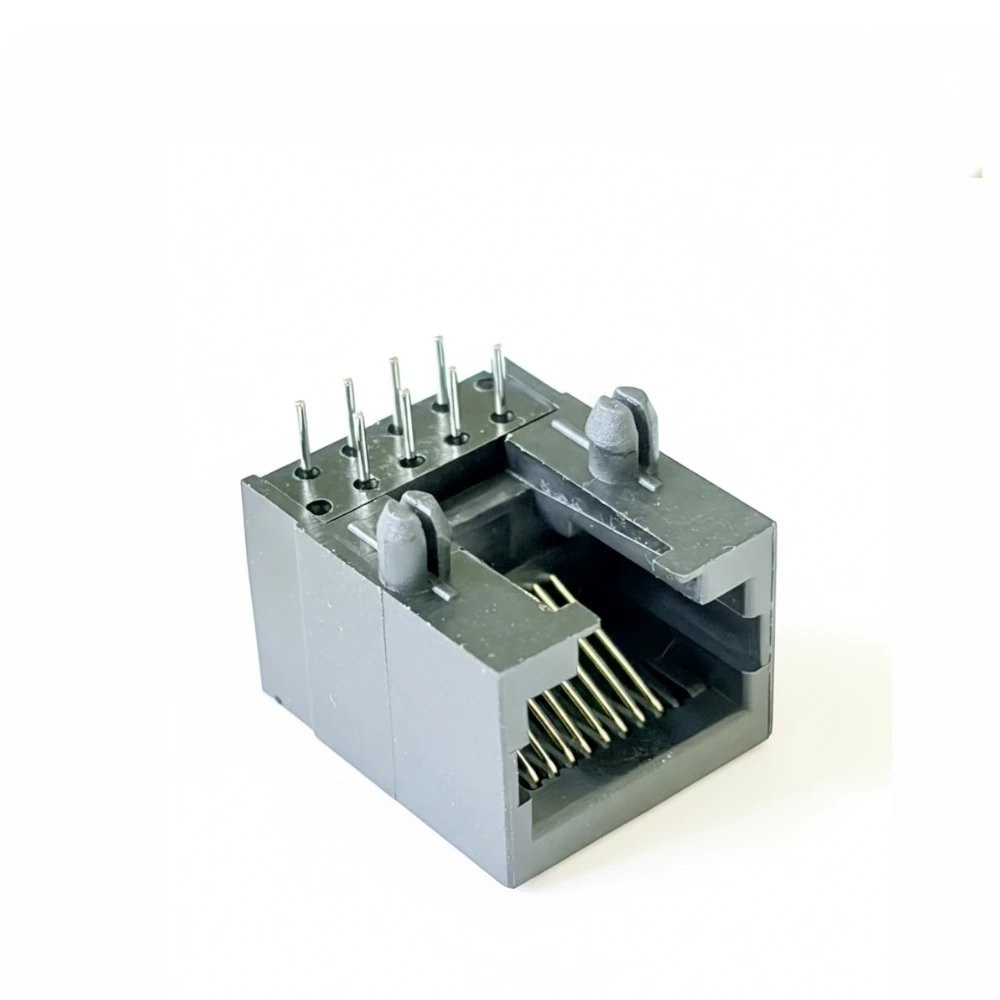

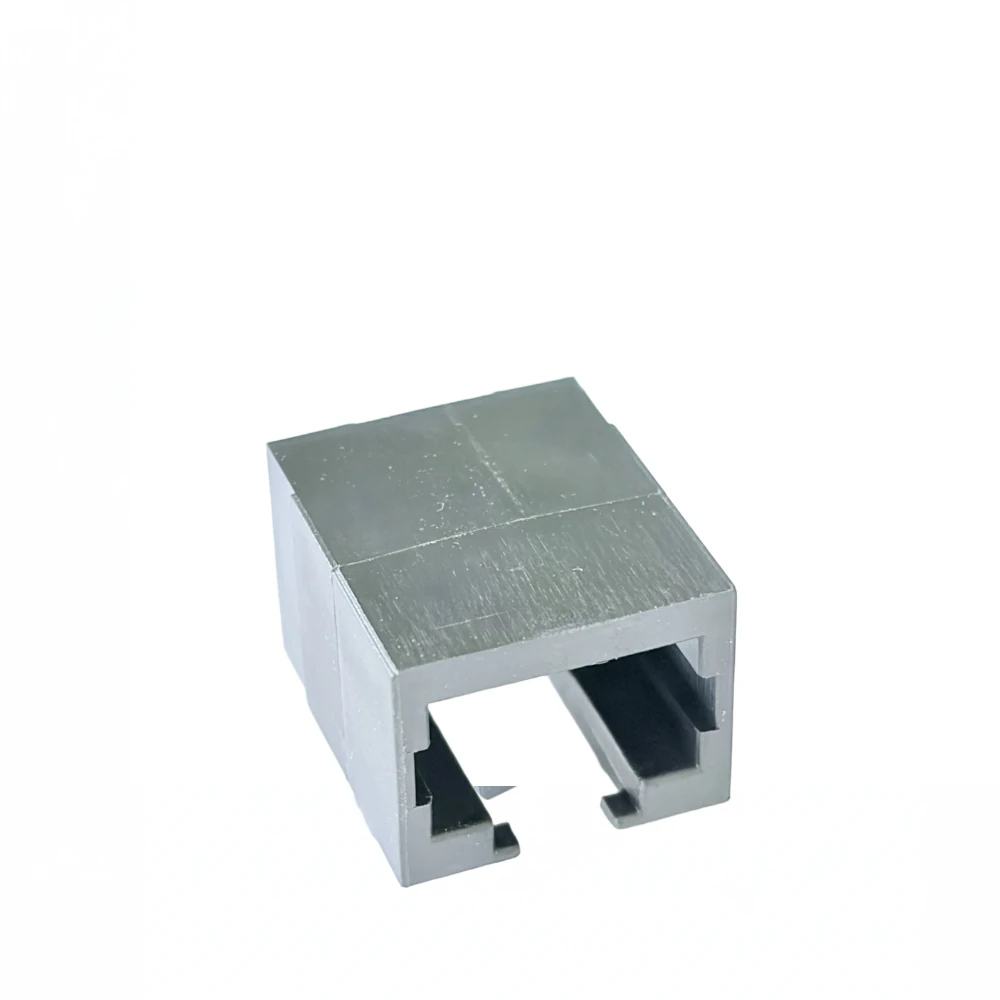

RJ45 8P8C 90 degree low profile modular jack PCB mounting

By /
rj45 8p8c 90 degree low profile modular jack pcb mounting
JP LP 8P8C

RJ45 8P8C 90 degree low profile modular jack PCB mounting

Low Profile RJ45 90-Degree Connector | Pran Electronics Pvt. Ltd.

Part code: JP-OE-8P8C

Size:
15.1x18x11.7mm height
Function:
RJ45 Low profile modular jack
Rating:
1.5A 125V AC
Part code:
JP-LP-8P8C
Enquiry
Data Sheet
Category:

In the world of high-density networking and compact industrial design, every millimeter counts. The Low Profile RJ45 90-Degree Connector by Pran Electronics Pvt. Ltd. is engineered specifically for applications where vertical space is a luxury you can’t afford.

Designed for seamless PCB integration, this connector combines a space-saving footprint with the high-speed signal integrity required for modern Ethernet standards.

Key Product Features

  • Ultra-Low Profile Design: The 90-degree (right-angle) orientation significantly reduces the height of the connector, making it ideal for slimline devices, rack-mounted servers, and compact IoT hardware.
  • Superior Signal Integrity: Optimized internal geometry minimizes crosstalk and electromagnetic interference (EMI), ensuring stable data transmission for Cat5e and Cat6 requirements.
  • Precision Engineering: Manufactured by Pran Electronics, a leader in precision components, featuring high-quality thermoplastic housing and gold-plated contacts for maximum conductivity and corrosion resistance.
  • Robust PCB Mounting: Equipped with sturdy solder pins and optional shielding tabs to ensure a secure mechanical connection that withstands frequent plugging and unplugging.
  • Industrial Durability: Built to operate across a wide temperature range, making it suitable for both commercial office networking and rugged industrial automation environments.

Technical Specifications

Feature Specification
<>Orientation 90-Degree / Right Angle / Side Entry
Mounting Type Through-Hole (THT) / PCB Mount
Housing Material High-Temperature Thermoplastic (UL 94V-0)
Contact Plating Selective Gold Plating over Nickel
Shielding Available in Shielded and Unshielded versions
Number of Ports Single Port (Standard)

Target Applications

Where does the Pran Electronics Low Profile RJ45 shine? Its versatility makes it a go-to for:

  1. Networking Hardware: Slim routers, switches, and patch panels.
  2. Industrial Automation: PLCs, HMIs, and sensor hubs with restricted enclosure depth.
  3. Consumer Electronics: Smart TVs, gaming consoles, and set-top boxes.
  4. Embedded Systems: Single-board computers (SBCs) and custom IoT gateways.

Why Choose Pran Electronics?

Choosing Pran Electronics Pvt. Ltd. means investing in reliability. As an ISO-certified manufacturer, Pran ensures that every RJ45 connector undergoes rigorous testing for mechanical endurance and electrical performance. Their components are recognized for meeting international standards, providing peace of mind for engineers and procurement teams alike.

Engineer’s Note: The right-angle design doesn’t just save height; it also simplifies cable management by directing the Ethernet cord parallel to the PCB, reducing strain on the connector housing.
