RJ45 8P8C 90 degree modular jack PCB mounting

By /
JP-S18P8C
JP S1 8P8C 1

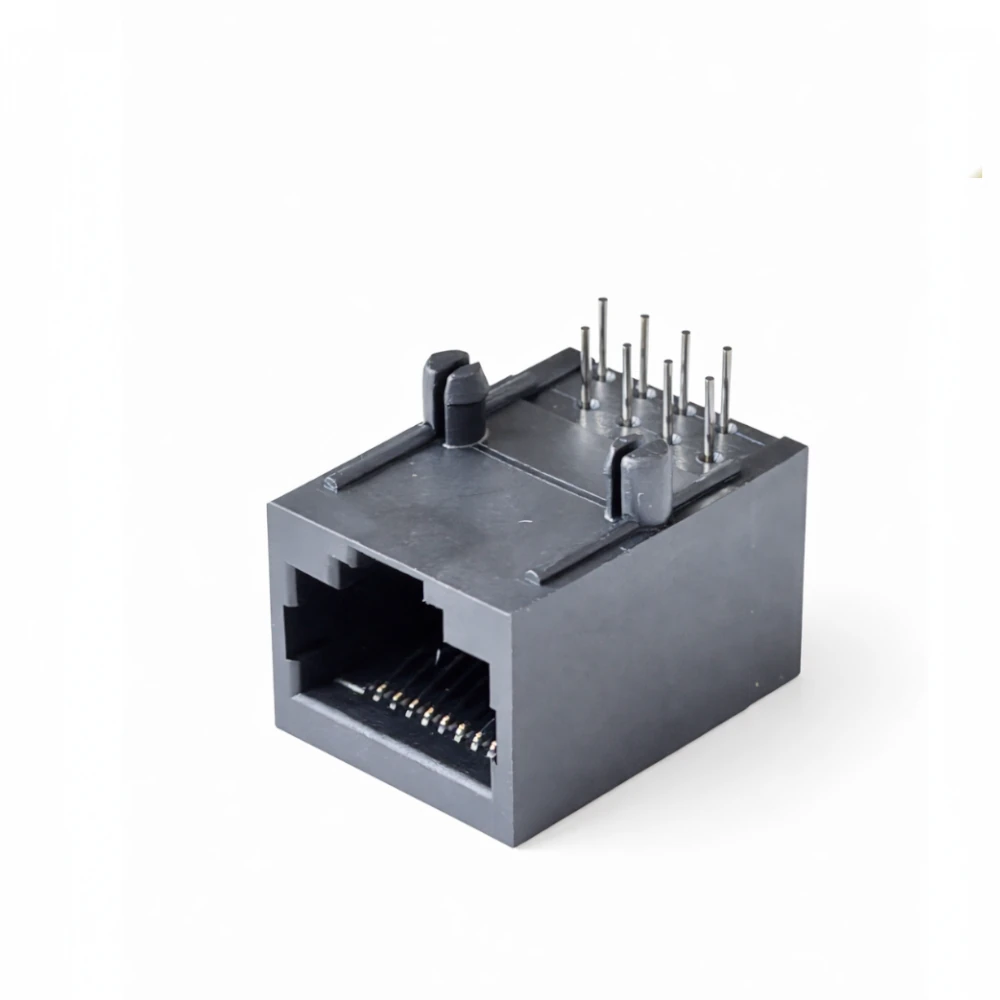

RJ45 8P8C 90 degree modular jack PCB mounting

RJ45 8P8C 90-Degree 21mm Extended Body Modular Jack | Pran Electronics Pvt. Ltd.

Short description: RJ45 8P8C 90 degree side entry 21mm modular Jack connector

Size:
15.25×20.7×13.5mm height
Function:
RJ45 8P8C side entry 21mm modular jack connector
Rating:
1.5A 125V AC
Part code:
JP-S1-8P8C
Enquiry
Data Sheet
Category:

In complex PCB layouts where components are crowded or recessed, standard connectors often fall short. The RJ45 8P8C 90-Degree 21mm Long Modular Jack by Pran Electronics Pvt. Ltd. is specifically engineered with an extended body length to bridge the gap between the PCB and the external enclosure.

This unshielded (UTP) version is designed for high-speed Ethernet applications where vertical space is limited, but horizontal reach is required for seamless panel integration.

Optimized Design for Recessed Panel Mounting

The “21mm Long” specification refers to the depth of the connector body. This extra length provides several mechanical advantages:

  • Deep-Enclosure Access: Perfect for devices where the PCB is mounted deep within the chassis, allowing the RJ45 port to sit flush with the outer casing.

  • Reduced Mechanical Stress: The extended 90-degree (Right Angle) profile allows for stable anchoring on the PCB while providing a clear path for Ethernet cable insertion.

  • Thermal Management: The elongated body creates natural spacing between the connector and heat-generating components (like processors or power modules) on the board.

Key Product Features

  • Standard 8P8C Interface: Fully compatible with all Category 5e (Cat5e) and Category 6 (Cat6) RJ45 Ethernet cables.

  • Unshielded (Non-Shielded) Design: A cost-effective, high-performance solution for internal networking environments where EMI/RFI interference is not a primary concern.

  • Precision PCB Mounting: Features robust through-hole (THT) solder pins for superior mechanical strength during repetitive plugging and unplugging.

  • High-Quality Contacts: Selective gold plating over nickel ensures maximum conductivity and prevents oxidation over the product’s lifespan.

  • Durable Housing: Molded from high-temperature, UL 94V-0 rated thermoplastic, ensuring safety and resilience during the wave soldering process.

Technical Specifications

Feature Specification
Connector Type RJ45 Modular Jack (8 Positions, 8 Contacts)
Orientation 90-Degree / Right Angle / Side Entry
Body Length 21 mm (Extended Profile)
Shielding Unshielded (Non-Shielded)
Mounting Type Through-Hole (THT) PCB Mount
Insulation Resistance 500 M Ohms minimum
Dielectric Strength 1000 V AC for 1 minute
Contact Plating Gold Plating over Nickel

Common Applications

The Pran 21mm RJ45 Jack is widely used in sectors requiring custom enclosure depths:

  1. Industrial Automation: PLCs and HMI panels with thick protective front plates.

  2. Networking Hardware: Deep-chassis rack-mount servers and switches.

  3. Smart Metering: Data Concentrator Units (DCUs) where the RJ45 port must exit through a thick weather-proof housing.

  4. Consumer Electronics: High-end audio/visual equipment and set-top boxes.

  5. Telecommunications: PBX systems and specialized VoIP hardware.

Why Source from Pran Electronics?

Based in India, Pran Electronics Pvt. Ltd. is a premier manufacturer of precision electromechanical components. Choosing their 21mm RJ45 jack ensures:

  • Make in India Advantage: Localized manufacturing leads to faster times, competitive pricing, and simplified logistics for Indian OEMs.

  • Quality Assurance: Every batch undergoes rigorous testing for mating durability and electrical continuity.

  • Compliance: All components are RoHS and REACH compliant, meeting international environmental safety standards.
