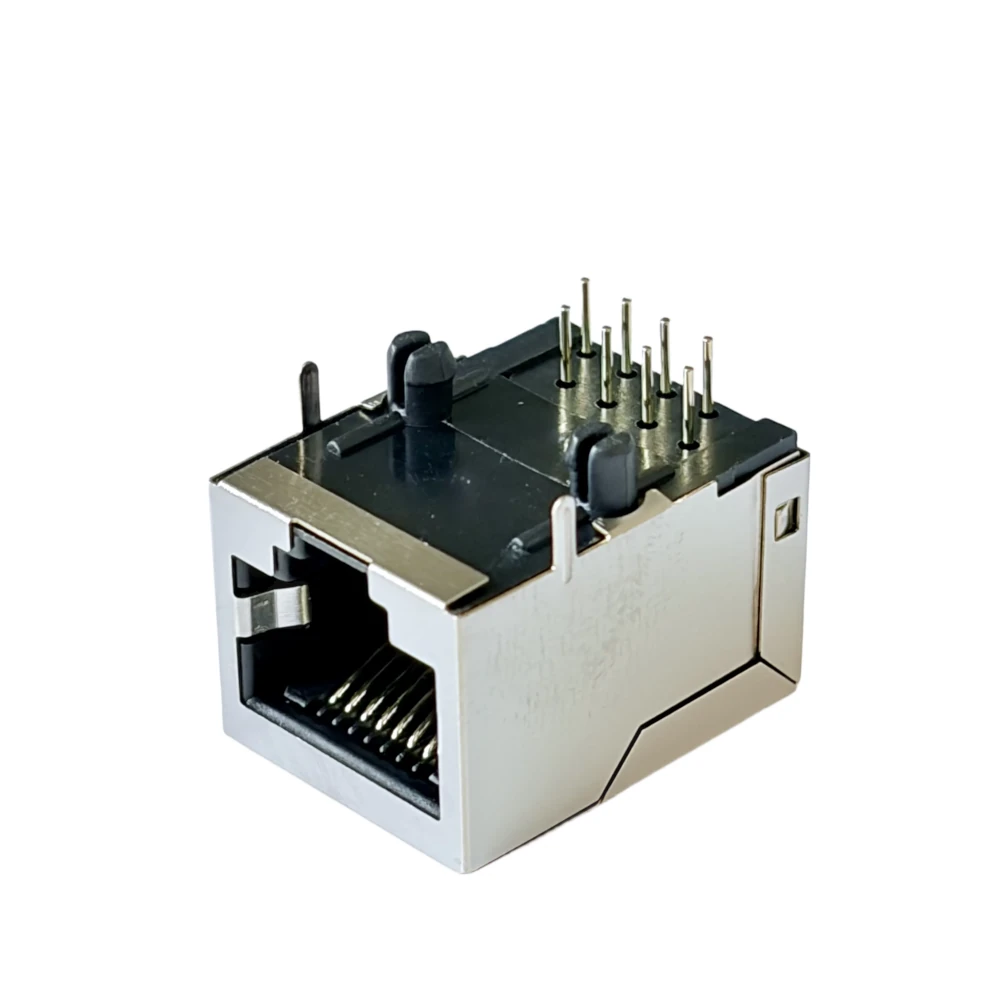

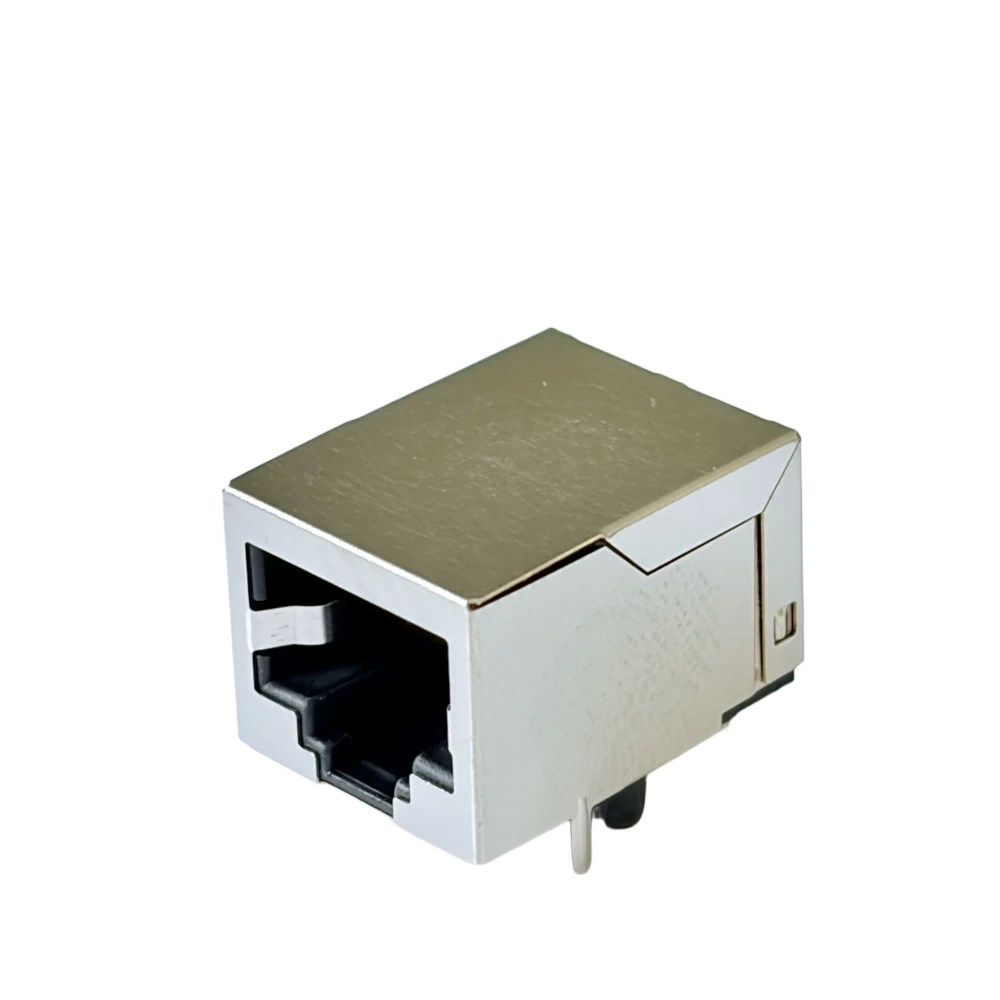

RJ45 8P8C 90 degree modular jack with Shield PCB mounting

By /
JP S1 8P8C SA
JP S1 8P8C SA

RJ45 8P8C 90 degree modular jack with Shield PCB mounting

RJ45 8P8C 90-Degree Shielded Modular Jack with F4.57mm Front Tab | Pran Electronics Pvt. Ltd.

Short description: RJ45 8P8C Shielded F4.57 Front tab 90 degree modular Jack connector

Size:
15.88×21.4×13.5mm height
Function:
RJ45 8P8C Shielded side entry modular jack connector F4.57
Rating:
1.5A 125V AC
Part code:
JP-S1-8P8C-SA
Enquiry
Data Sheet
Category:

In high-performance networking and industrial electronics, electrical noise and mechanical stability are the two greatest challenges. The RJ45 8P8C 90-Degree Shielded Modular Jack by Pran Electronics Pvt. Ltd. is engineered to solve both.

Featuring a robust metal shield and a specialized F4.57mm front tab, this connector is designed for high-speed Ethernet applications that require superior grounding and protection against Electromagnetic Interference (EMI).

Optimized Shielding and Grounding (F4.57mm Front Tab)

The standout feature of this modular jack is its integrated F4.57mm front tab. This mechanical design serves two critical purposes:

  • EMI/RFI Protection: The full metal shield encases the connector to block external noise, while the front tabs create a direct, low-impedance ground path between the cable shield and the device chassis/PCB.

  • Superior Mechanical Stability: The front tabs provide additional anchoring points, ensuring the connector remains perfectly aligned and secure even under the strain of heavy-duty industrial Ethernet cables.

Key Product Features

  • 90-Degree (Right Angle) Orientation: Perfect for side-entry PCB mounting, allowing for slimline device designs and efficient horizontal cable routing.

  • 8P8C Standard Interface: Fully compatible with all RJ45 plugs for Cat5e and Cat6 data transmission.

  • High-Conductivity Contacts: Features precision gold plating over nickel, ensuring a stable connection and preventing corrosion over long-term use.

  • Rugged Construction: Built with a high-temperature thermoplastic housing (UL 94V-0) and a durable brass shield with nickel plating.

  • Industrial Grade Reliability: Tested for high mating cycles, making it suitable for environments where cables are frequently connected and disconnected.

  • Make in India: Manufactured by Pran Electronics Pvt. Ltd., providing a high-quality domestic alternative for Indian OEMs and global exporters.

Technical Specifications

Feature Specification
Connector Type RJ45 (8 Positions, 8 Contacts)
Orientation 90-Degree / Right Angle / Side Entry
Shielding Full Metal Shield with F4.57mm Front Tab
Mounting Type Through-Hole Technology (THT)
Contact Plating Selective Gold Plating over Nickel
Housing Material High-Temp Thermoplastic (UL 94V-0)
Insulation Resistance 500 M Ohms minimum
Voltage Rating 125 V AC

Target Applications

The Pran Shielded RJ45 Jack is the preferred choice for environments prone to electrical interference:

  1. Industrial Automation: PLCs, CNC machinery, and motor controllers where high-voltage noise is present.

  2. Networking Hardware: High-speed routers, managed switches, and server racks.

  3. Smart Metering & Infrastructure: Data Concentrators (DCUs) and AMI gateways requiring secure, grounded data ports.

  4. Medical Equipment: Sensitive diagnostic tools that require clean signal transmission.

  5. Telecommunications: Base stations and VoIP gateways.

Why Source from Pran Electronics?

Pran Electronics Pvt. Ltd. is a premier manufacturer based in India, known for producing world-class electromechanical components. By choosing the F4.57mm tabbed RJ45 jack, you are guaranteed:

  • Precision Manufacturing: Automated production ensures consistent quality across every batch.

  • Enhanced Connectivity: Designed to meet rigorous telecommunication and safety standards.

  • RoHS & REACH Compliance: Environmentally friendly components that meet global export regulations.
