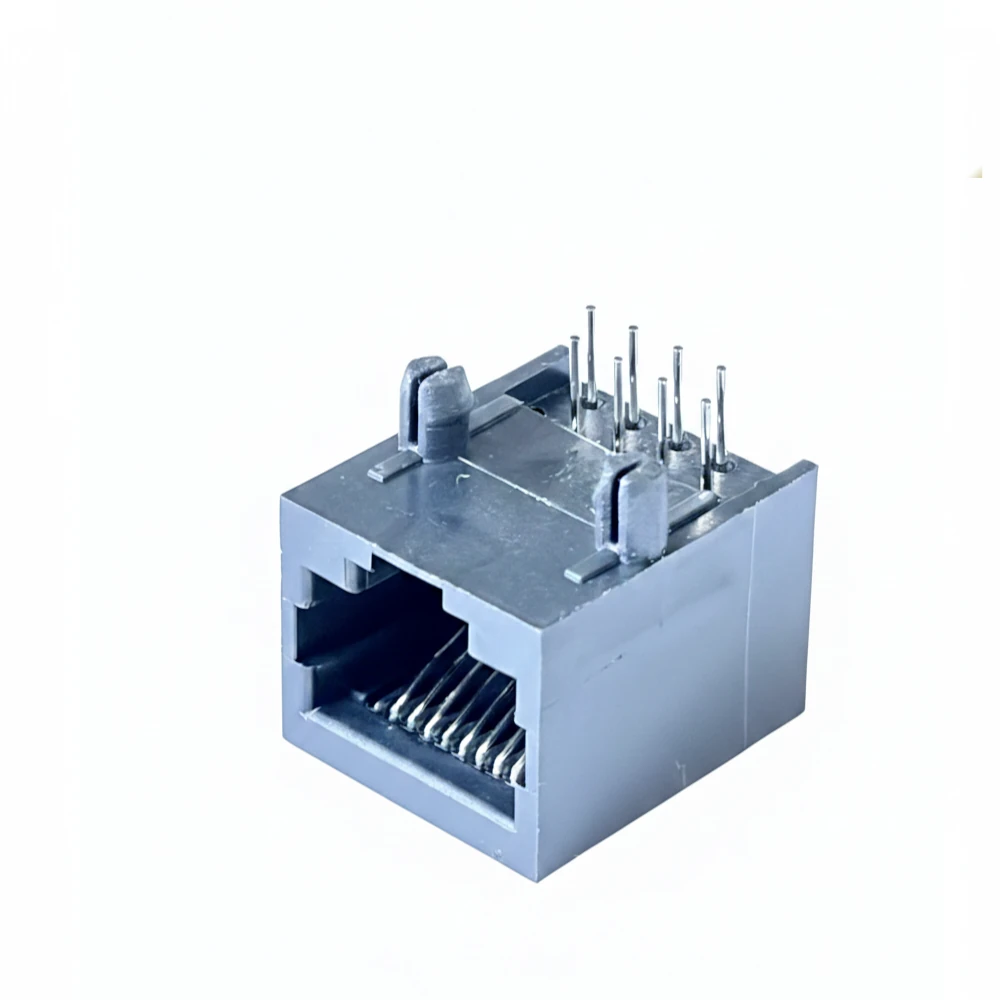

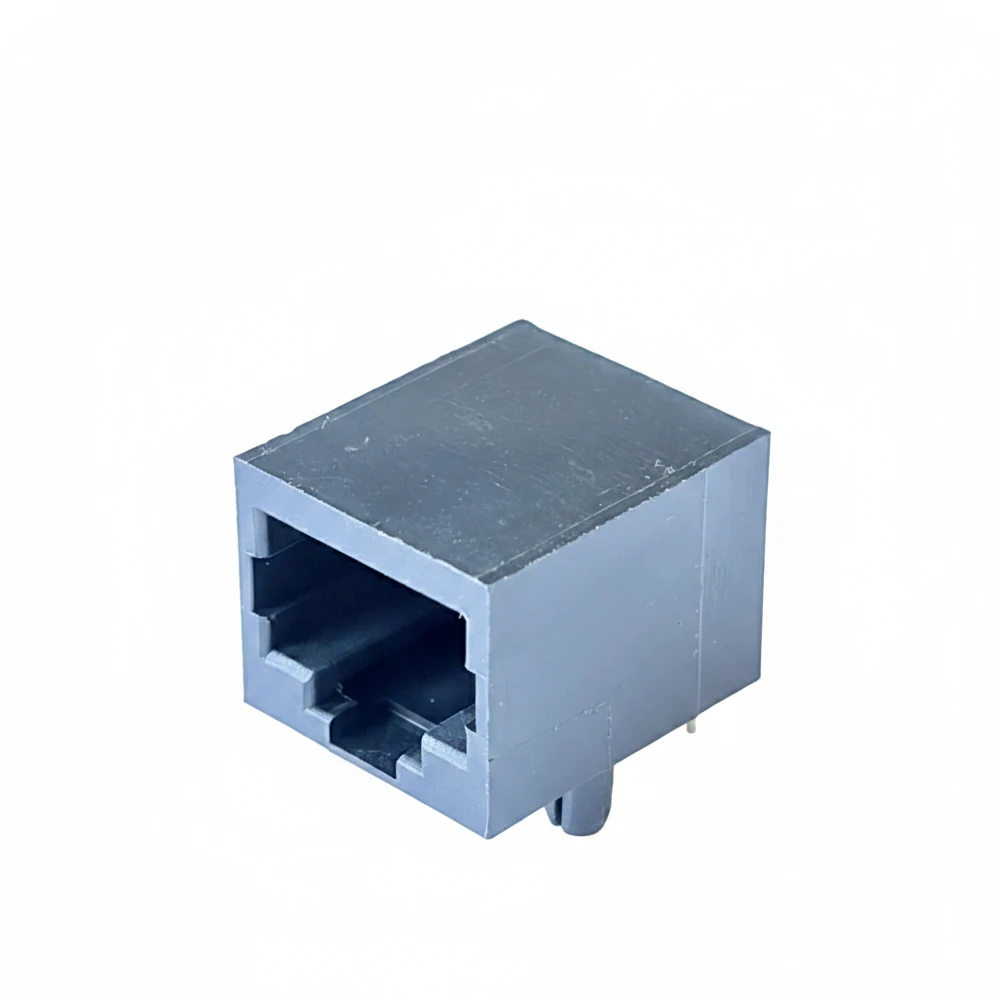

RJ45 8P8C 90 degree Short body modular jack PCB mounting

By /
RJ45 8P8C 90 degree Short body modular jack PCB mounting
JP-S2-8P8C1

RJ45 8P8C 90 degree Short body modular jack PCB mounting

RJ45 8P8C 90-Degree 18mm Short Body Modular Jack | Pran Electronics Pvt. Ltd.

Short description: RJ45 8P8C 90 degree side entry 18mm modular Jack connector

Size:
15.1×17.63×12.6mm height
Function:
RJ45 8P8C side entry 18mm modular jack connector
Rating:
1.5A 125V AC
Part code:
JP-S2-8P8C
Enquiry
Data Sheet
Category:

In modern PCB design, saving even a few millimeters of board space can be the difference between a sleek, portable product and a bulky one. The RJ45 8P8C 90-Degree 18mm Short Body Modular Jack byPran Electronics Pvt. Ltd. is specifically engineered for high-density applications where depth is restricted.

With a compact 18mm body length, this unshielded (UTP) connector provides a low-profile, side-entry solution without compromising the signal integrity of your Ethernet connections.

Size: 15x18x12.6mm height
Part code: JP-S2-8P8C

Engineered for High-Density PCB Layouts

The “18mm Short Body” design is a strategic choice for engineers working with limited “Z-axis” or horizontal depth. This connector is optimized for:

  • Compact Footprint: By reducing the connector depth to 18mm, it frees up valuable real estate on the PCB for other critical components like capacitors, micro controllers, or power modules.

  • Slimline Enclosures: Ideal for ultra-thin networking devices, hand-held diagnostic tools, and compact IoT gateways.

  • Efficient Cable Management: The 90-degree (Right Angle) entry directs the Ethernet cable parallel to the PCB, minimizing the clearance needed behind the device

Key Product Features

  • Standard 8P8C Configuration: Fully compatible with standard RJ45 plugs used in Cat5e and Cat6 networking.

  • Unshielded (Non-Shielded) Design: A lightweight and cost-effective solution for environments where metal shielding is not required, offering a cleaner aesthetic for plastic enclosures.

  • Premium Contact Plating: High-grade gold plating over nickel ensures low contact resistance and prevents corrosion over thousands of mating cycles.

  • Robust Through-Hole Mounting: Designed with sturdy THT (Through-Hole Technology) pins for a secure mechanical anchor, preventing “solder joint fatigue” from frequent cable plugging.

  • High-Temperature Performance: The housing is molded from high-grade thermoplastic (UL 94V-0), capable of withstanding the heat of professional wave soldering.

Technical Specifications

Feature Specification
Connector Type RJ45 Modular Jack (8P8C)
Orientation 90-Degree / Right Angle / Side Entry
Body Depth 18 mm (Compact Shorter Profile)
Shielding Unshielded (UTP)
Mounting Type Through-Hole (THT) PCB Mount
Insulation Resistance 500 M Ohms minimum
Contact Resistance 30 m Ohms maximum
Voltage Rating 125 V AC

Target Applications

The Pran 18mm RJ45 Jack is the go-to component for space-constrained electronics:

    1. Industrial IoT: Compact sensors and edge computing nodes.

    2. Home Automation: Smart hubs, wall-mounted panels, and security cameras.

    3. Consumer Electronics: Mini routers, gaming peripherals, and set-top boxes.

    4. Telecommunications: Compact VoIP phones and desktop network switches.

    5. Smart Metering: Data Concentrator Units (DCUs) where internal space is at a premium.

Why Choose Pran Electronics?

As a leader in the Indian electromechanical industry, Pran Electronics Pvt. Ltd. delivers world-class quality with the benefits of localized manufacturing.

  • Precision Engineering: Every modular jack is manufactured to tight tolerances to ensure a perfect “click” fit every time.

  • Reliable Supply Chain: By sourcing from an Indian manufacturer, you benefit from reduced lead times, easier logistics, and direct technical support.

  • Global Standards: All components are RoHS and REACH compliant, ensuring they are safe for international markets.
