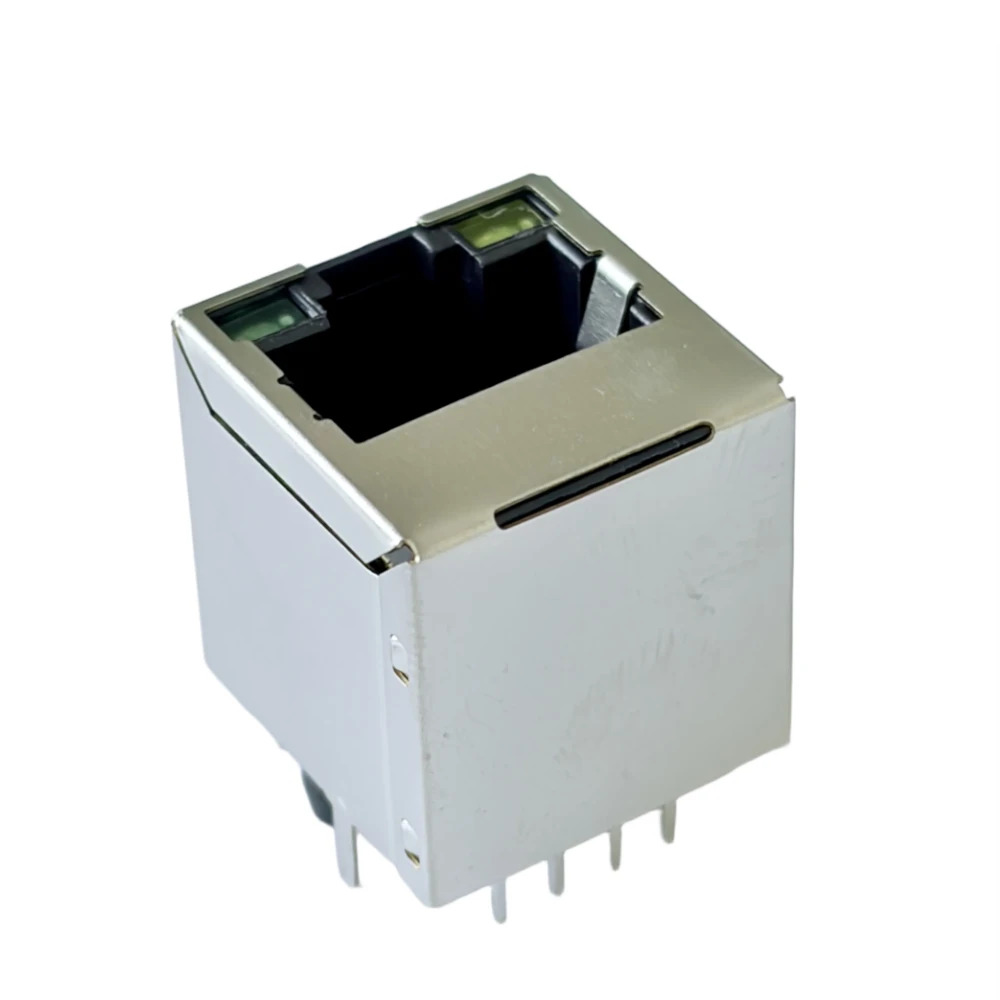

In high-density PCB designs and specialized vertical enclosures,board space is at a premium. The 180-Degree (Vertical) Ethernet RJ45 Jack with Internal Magnetics byPran Electronics Pvt. Ltd. is a top-entry, all-in-one connectivity solution.

By integrating the Ethernet transformer, common-mode chokes, diagnostic LEDs, and full EMI shielding into a single vertical housing,this component—often called a Vertical MagJack—ensures superior signal integrity while significantly reducing the horizontal footprint on your motherboard.

Optimized for Vertical Integration

The 180-degree orientation is specifically engineered for hardware designs where traditional side-entry connectors are impractical:

• Space-Saving Vertical Mount: The top-entry design allows for a significantly smaller horizontal footprint on the PCB, making it ideal for high-density servers, mezzanine cards, and slim-profile industrial devices.

• Integrated MagJack Technology: Internal magnetics handle signal conditioning, filtering out EMI/RFI and providing critical 1500V AC galvanic isolation to protect your PHY chip from network surges and ground loops.

• Streamlined Diagnostics: High-visibility LEDs are built directly into the vertical housing, providing clear “Link” and “Activity” status indicators that are visible from the top of the device.

Key Features & Technical Excellence

• Comprehensive EMI Shielding: Encased in a robust, nickel-plated brass shield with multiple grounding tabs. This provides 360 degree protection against electromagnetic interference, ensuring stable 10/100/1000 Base-T performance.

• Premium Contact Interface: Features selective gold plating over nickel on the 8P8C contacts, ensuring maximum conductivity and corrosion resistance over a long service life.

• High-Temperature Construction: Built with UL 94V-0 rated thermoplastic, designed to withstand industrial heat and professional wave or reflow soldering processes.

• Rugged Mechanical Stability: The 180-degree through-hole (THT) pins are designed to anchor the connector securely, resisting the vertical mechanical stress of repetitive cable plugging.

• Made in India: Manufactured by Pran Electronics Pvt. Ltd., providing world-class quality with the benefits of localized supply chain and technical support.

Technical Specifications

Primary Applications

The Pran 180-Degree Magnetic RJ45 is the preferred choice for specialized electronics:

1. Industrial Computing: Single-board computers (SBCs), mezzanine cards, and compact IPCs.

2. Smart Metering: Data Concentrator Units (DCUs) where the RJ45 port must be accessible from the top panel of a narrow enclosure.

3. Networking Hardware: High-density rack-mount servers, patch panels, and network testing equipment.

4. Security & Surveillance: Wall-mounted IP camera hubs and compact NVRs.

5. Telecom Infrastructure: Specialized base station equipment and small-cell gateways.

Why Source from Pran Electronics?

Pran Electronics Pvt. Ltd. is an ISO-certified leader in the Indian electronics landscape. Choosing their vertical magnetic RJ45 jacks ensures:

• Precision Signal Integrity: Every unit is tested for return loss, crosstalk, and electrical isolation to meet IEEE 802.3 standards.

• EMC Compliance: Designed to help your end-product pass stringent CE and FCC electromagnetic compatibility tests by suppressing noise at the source.

• Localized Logistics: Faster lead times and direct engineering support for custom internal schematic requirements.
