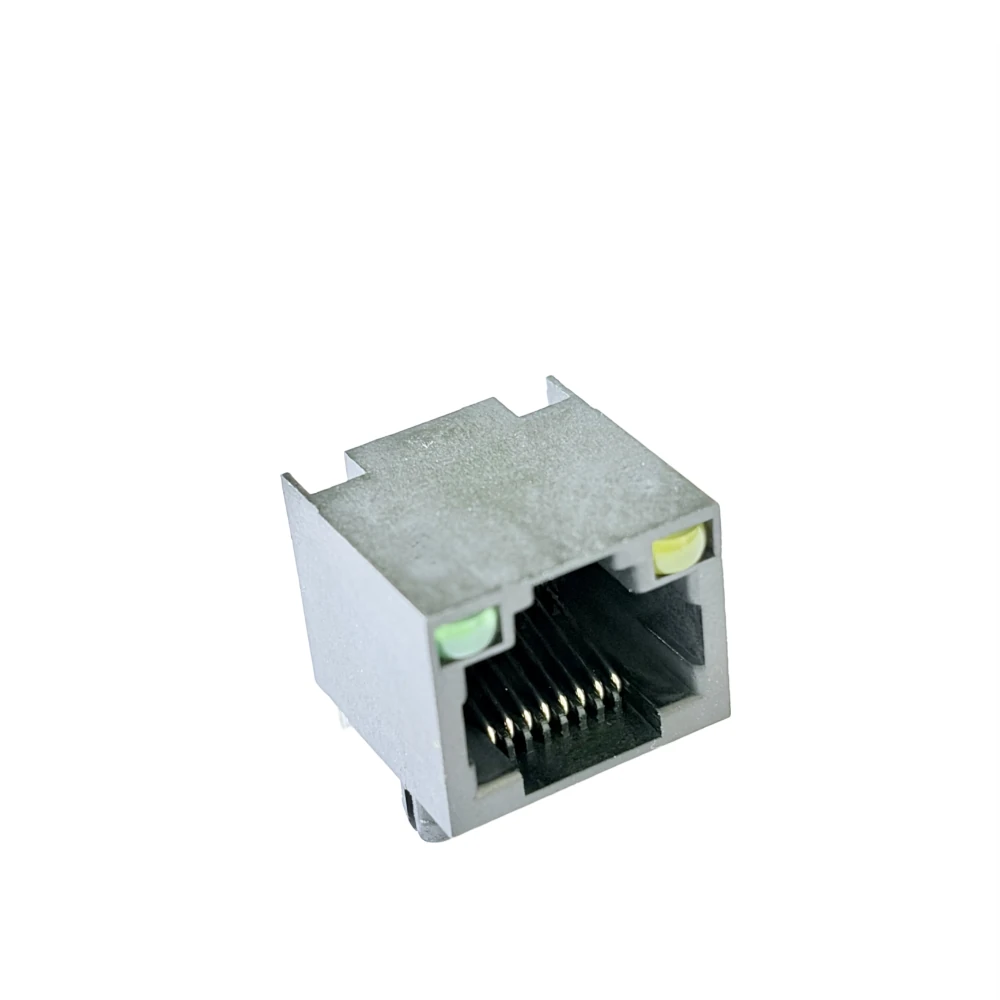

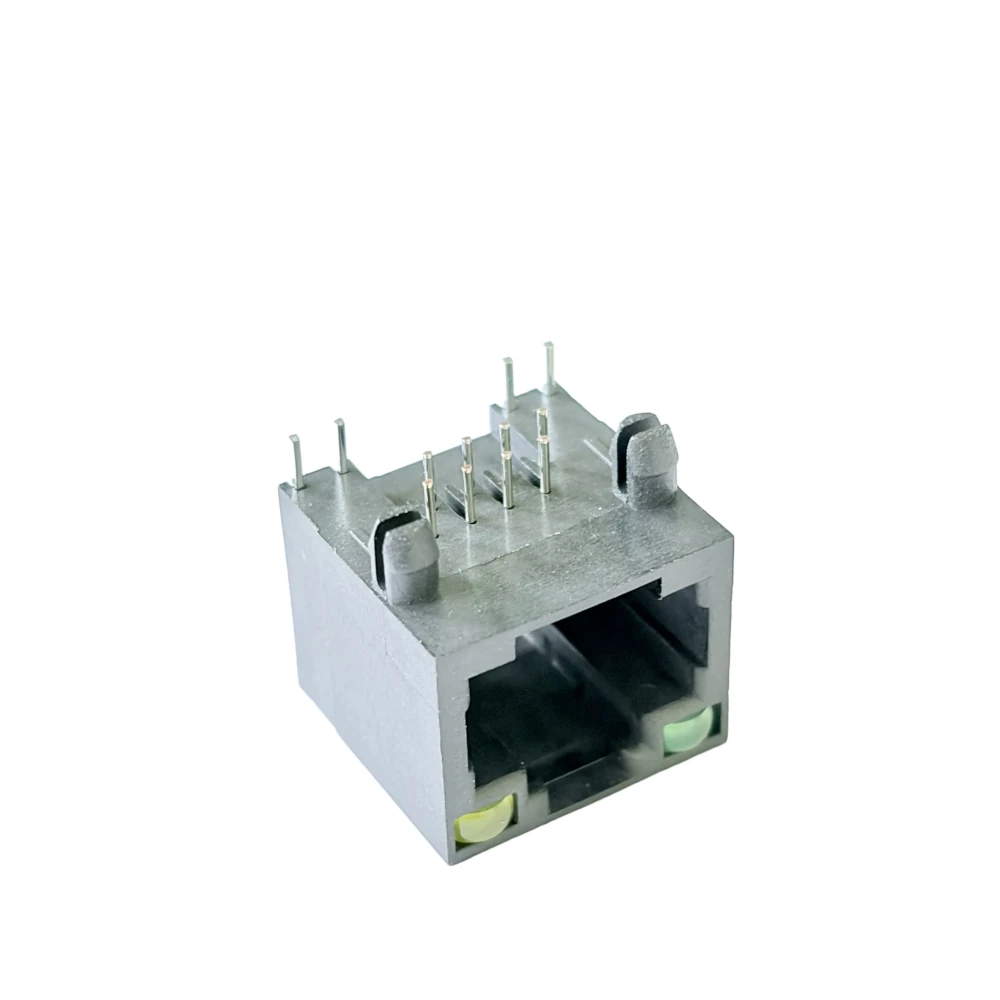

RJ45 8P8C LED modular jack PCB mounting

Tab-Up RJ45 Modular Jack with Integrated LEDs (Unshielded) | Pran Electronics Pvt. Ltd.

Short description: RJ45 8P8C LED Tab up modular Jack connector

Size:
15.1×17.63×12.6mm height
Function:
RJ45 8P8C Tab up modular jack with LED connector
Rating:
1.5A 125V AC
Part code:
JP-LED-8P8C-XX, replace XX with LED colour
Enquiry
Data Sheet
Category:

In modern electronic design, simplicity and cost-efficiency are often as important as functionality. The Tab-Up RJ45 Modular Jack with Integrated LEDs (Unshielded) by Pran Electronics Pvt. Ltd. is a precision-engineered solution for high-speed Ethernet applications where metal shielding is not required, but visual diagnostics are essential.

By integrating the LEDs directly into a lightweight, unshielded 8P8C housing, this connector helps engineers save PCB space, reduce the Bill of Materials (BOM), and provide a clean, modern aesthetic for plastic-enclosure devices.

The Benefit of Tab-Up & Unshielded Integration

This specific configuration is designed for versatility in commercial and indoor networking environments:

  • Tab-Up Latch Orientation: The locking tab is located on the top of the jack, allowing for easier cable release in designs where the PCB is mounted close to the bottom of the device housing.

  • Integrated Status Monitoring: Dual LEDs (typically Green and Yellow) are built into the front face of the connector, providing instant feedback on Link Status and Data Activity without requiring separate PCB-mounted LEDs.

  • Unshielded (UTP) Advantage: The absence of a metal shield makes this connector lighter and more cost-effective. It is perfect for devices housed in non-conductive plastic casings where internal EMI is already managed through board layout.

  • Streamlined Assembly: Replacing separate LEDs and a standard RJ45 with this integrated unit reduces pick-and-place time and simplifies your PCB trace routing.

Key Product Features

  • Standard 8P8C Interface: Fully compatible with Category 5e (Cat5e) and Category 6 (Cat6) Ethernet cables.

  • High-Visibility LEDs: Available in various color combinations (Green/Yellow, Green/Green) to meet specific diagnostic requirements.

  • Premium Gold-Plated Contacts: Features selective gold plating over nickel to ensure low contact resistance and long-term reliability against oxidation.

  • Durable Thermoplastic Body: Molded from high-grade, UL 94V-0 rated thermoplastic, capable of withstanding industrial operating temperatures and standard wave soldering.

  • Robust THT Mounting: Through-hole technology (THT) pins provide a secure mechanical anchor to the PCB, ensuring the jack stays firm during frequent cable insertion.

Technical Specifications

Feature Specification
Connector Type RJ45 Modular Jack (8 Positions, 8 Contacts)
Orientation Tab-Up / Right Angle
Shielding Unshielded (Non-Shielded)
LED Indicators Integrated (Green, Yellow options)
Mounting Type Through-Hole (THT) PCB Mount
Contact Plating Selective Gold Plating over Nickel
Insulation Resistance 500 M Ohms minimum
Voltage Rating 125 V AC

Primary Applications

The Pran Unshielded LED RJ45 is a popular choice for cost-sensitive, high-performance electronics:

  1. Consumer Networking: SOHO routers, wireless access point extensions, and home network hubs.

  2. Smart Home Devices: Smart TV hubs, security camera NVRs, and home automation controllers.

  3. Industrial IoT: Lightweight edge sensors and data loggers where plastic enclosures are utilized.

  4. Telecommunications: VoIP phones, digital modems, and desktop switches.

  5. Smart Metering: Communication modules for energy meters that require status indicators for field technicians.

Why Choose Pran Electronics?

Pran Electronics Pvt. Ltd. is an ISO-certified manufacturer based in India, dedicated to producing high-quality electromechanical components that meet global standards. Choosing this unshielded LED jack provides:

  • Make in India Reliability: Localized manufacturing ensures high-quality standards with the benefit of shorter lead times for Indian and international OEMs.

  • Compliance: All components are RoHS and REACH compliant, ensuring environmental safety for global export.

  • Rigorous Testing: Every connector is tested for LED functionality, contact tension, and mechanical durability.
