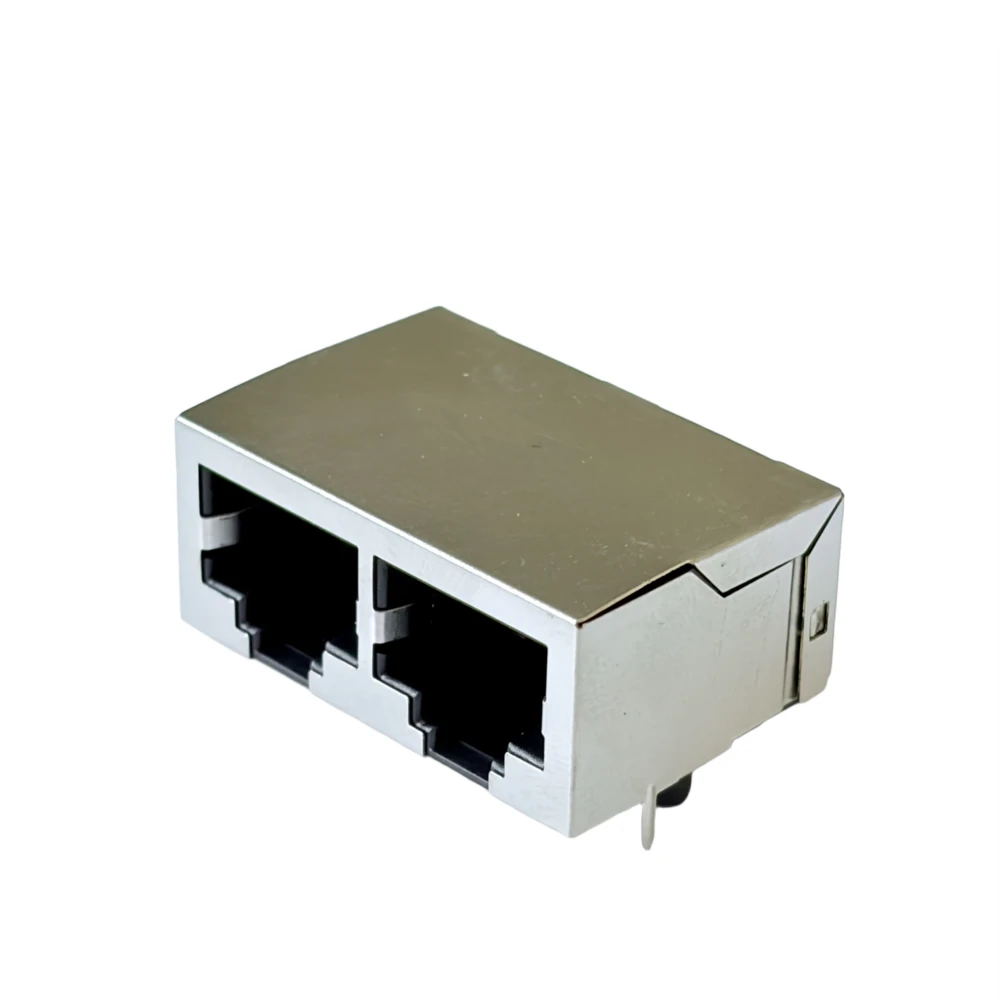

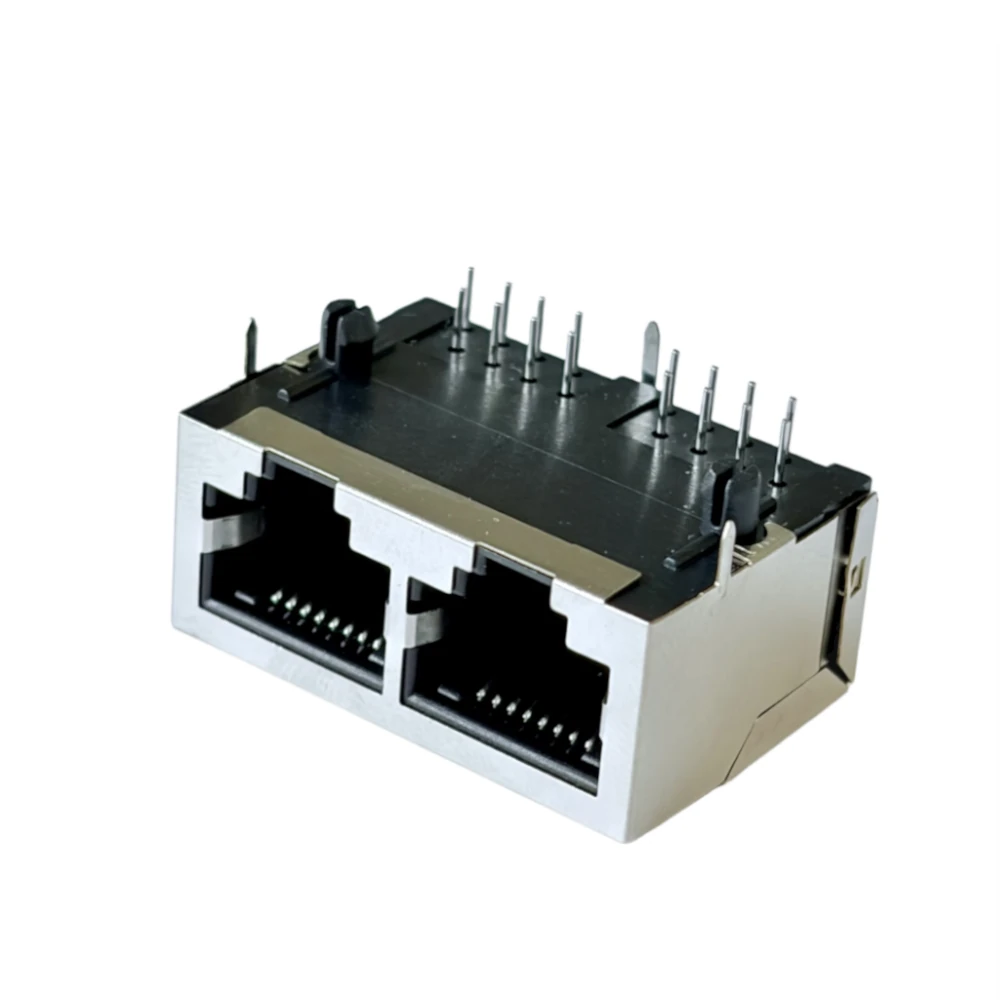

In the design of modern networking and communication hardware, optimizing board space without sacrificing signal integrity is a constant challenge. The 1×2 Port Shielded RJ45 8P8C 90-Degree Modular Jack by Pran Electronics Pvt. Ltd. is a professional-grade “Ganged” connector that integrates two independent Ethernet ports into a single, robust housing.
This Dual-Port (1×2) configuration is specifically engineered for high-density PCB layouts, providing a shielded, side-entry solution that is ideal for routers, switches, and industrial IoT gateways.
Superior Shielding for Interference-Free Data
The 1×2 Ganged RJ45 is wrapped in a high-quality metal shield, providing critical protection for multi-channel data systems:
-
Dual-Port Isolation: The integrated shield protects both ports from external Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring that data packets remain clean even in noisy industrial environments.
-
Minimized Cross talk: Precision engineering ensures that signal bleed between the two adjacent ports is minimized, maintaining the performance standards required for Cat5e and Cat6 applications.
-
Enhanced Grounding: Multiple integrated grounding tabs provide a low-impedance path to the PCB ground plane, essential for protecting sensitive internal circuitry from electrostatic discharge (ESD).
Key Product Features
-
Space-Saving 1×2 Design: By consolidating two ports into a single block, this connector reduces the component footprint and simplifies PCB trace routing compared to using two separate single-port jacks.
-
90-Degree (Right Angle) Orientation: The side-entry profile is perfect for low-profile enclosures, directing Ethernet cables horizontally to save vertical clearance.
-
8P8C Standard Interface: Each port features a full 8-position, 8-contact configuration, fully compatible with all standard RJ45 Ethernet plugs.
-
High-Conductivity Gold Contacts: Features selective gold plating over nickel to ensure high-speed data transmission and a long service life with thousands of mating cycles.
-
Robust Mechanical Strength: The unified housing and shield provide a stable, rigid structure that withstands the mechanical stress of simultaneous cable connections.
-
Make in India: Manufactured by Pran Electronics Pvt. Ltd., a premier Indian brand ensuring world-class quality with localized supply chain advantages.
Technical Specifications
| Feature | Specification |
| Connector Type | Dual-Port RJ45 (Ganged) |
| Port Configuration | 1×2 (2 Ports in a single row) |
| Interface | 8P8C (per port) |
| Orientation | 90-Degree / Right Angle / Side Entry |
| Shielding | Full Metal Shield (Nickel-Plated Brass) |
| Mounting Type | Through-Hole Technology (THT) |
| Contact Plating | Gold Plating over Nickel |
| Insulation Resistance | 500 M Ohms minimum |
| Voltage Rating | 125 V AC |
Primary Applications
The Pran 1×2 Shielded RJ45 is a versatile component found in numerous high-tech sectors:
-
Networking & IT: SOHO routers, network switches, and hardware firewalls.
-
Industrial Automation: Dual-channel PLCs, industrial Ethernet hubs, and motor drive controllers.
-
Smart Metering & AMI: Data Concentrator Units (DCUs) that require multiple back haul or local Ethernet connections.
-
Security & Surveillance: 2-channel NVRs and PoE (Power over Ethernet) extenders.
-
Telecommunications: VoIP gateways and enterprise-grade modems.
Why Choose Pran Electronics?
Pran Electronics Pvt. Ltd. stands as a leader in precision electromechanical manufacturing in India. Choosing their 1×2 shielded modular jack guarantees:
-
Precision Engineering: Automated manufacturing ensures that every 1×2 block is perfectly aligned for easy PCB mounting and enclosure fitment.
-
Reliability: Rigorously tested for contact resistance, insulation resistance, and mechanical endurance.
-
Global Compliance: Fully RoHS and REACH compliant, making these connectors suitable for export-ready products globally.
