High-Performance 6x6mm Standard 4-Pin Tactile Switch | Pran Electronics Pvt. Ltd.

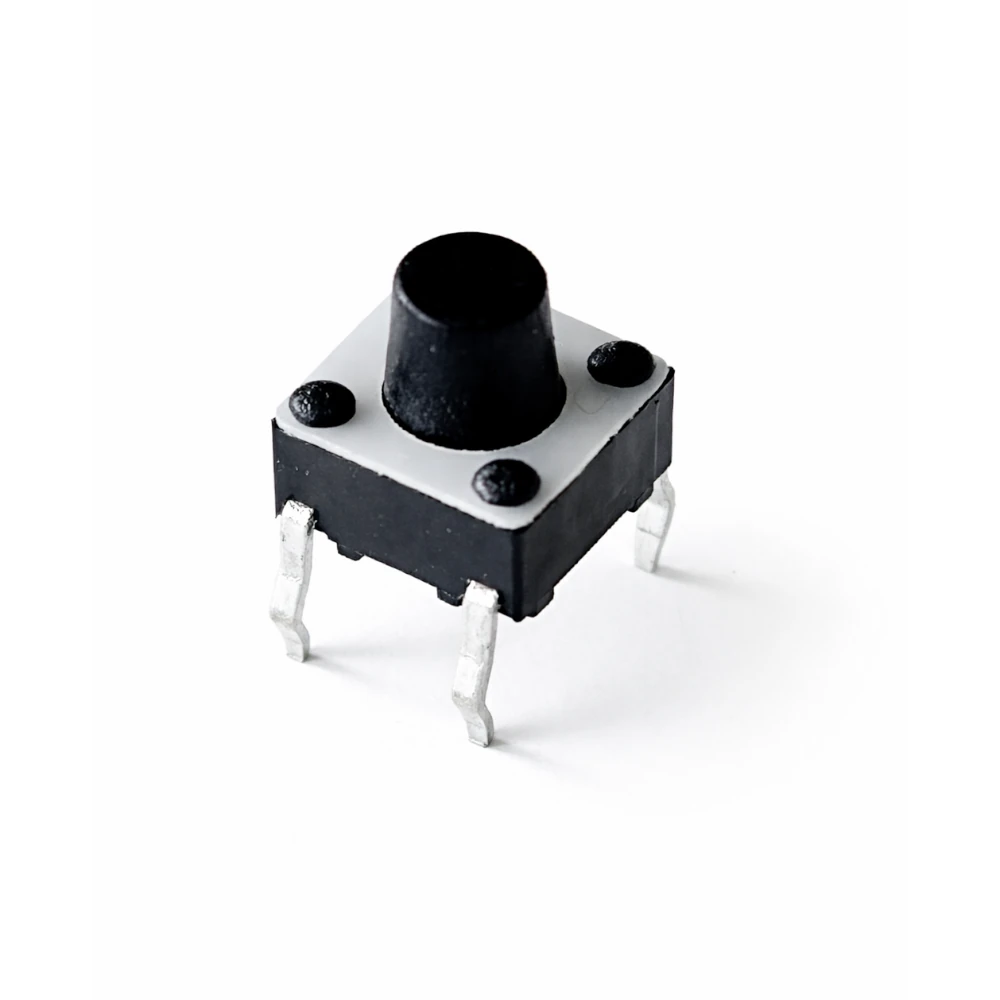

The 6x6mm Standard 4-Pin Tactile Switch from Pran Electronics Pvt. Ltd. is the industry benchmark for reliable, momentary push-button performance. Designed for high-density PCB mounting, this versatile tact switch provides the crisp, audible click and tactile feedback essential for user interface panels and industrial control systems.

Product Overview

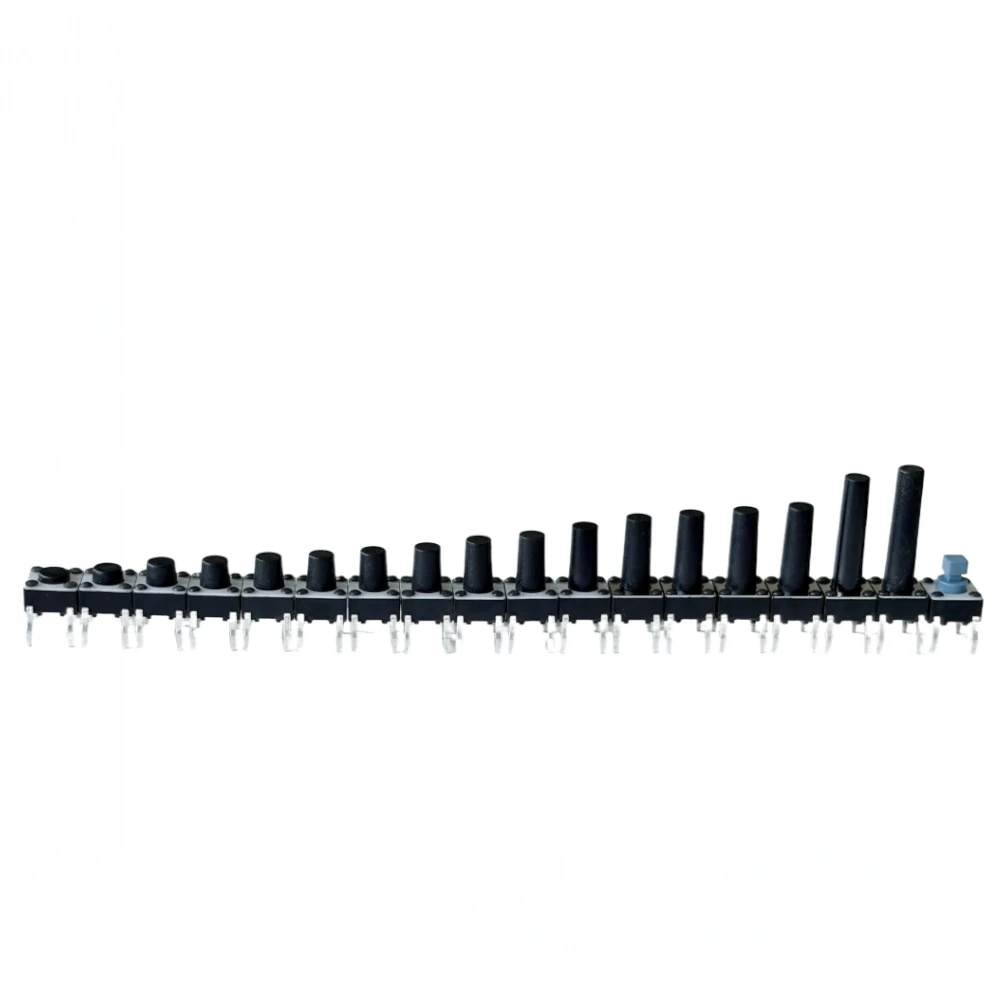

The 6x6mm series is one of the most widely used tactile switch footprints globally, and Pran Electronics has refined the design to ensure maximum mechanical life and electrical stability. Featuring a 4-pin through-hole configuration, these switches offer superior structural integrity once soldered to the board, making them ideal for high-frequency use.

Whether you are designing consumer electronics, automotive dashboards, or industrial instrumentation, this switch provides the precision and durability required for professional-grade hardware.

Key Specifications

Why Choose the Pran 6x6mm Tact Switch?

• Distinct Tactile Feedback: Engineered for a sharp, “clicky” response that confirms actuation even in noisy environments.

• Long Operational Life: Tested for hundreds of thousands of cycles to ensure long-term reliability in the field.

• Heat Resistant Materials: Built with high-quality thermoplastic that survives standard wave soldering and reflow processes without deformation.

• Stable 4-Pin Layout: The 4-pin design provides two connection points for each side of the switch, offering redundancy and enhanced PCB grip.

• Cost-Effective Precision: High-volume manufacturing by Pran Electronics ensures top-tier quality at a competitive price point for large-scale production.

Versatile Applications

The 6x6mm tact switch is the “workhorse” of the electronics industry, found in:

• Consumer Electronics: TV remotes, microwave ovens, and audio equipment.

• Computer Peripherals: Reset buttons, power switches, and interface keys.

• Automotive: Steering wheel controls and dashboard interfaces.

• Industrial Controls: PLC input buttons and diagnostic equipment.

• Medical Devices: Interface panels for portable monitoring equipment.

Engineering Notes

The 4-pin layout is internally connected in pairs. This means Pins 1 & 2 are tied together, and Pins 3 & 4 are tied together. This allows the switch to act as a bridge on the PCB, simplifying trace routing in complex circuit designs.
