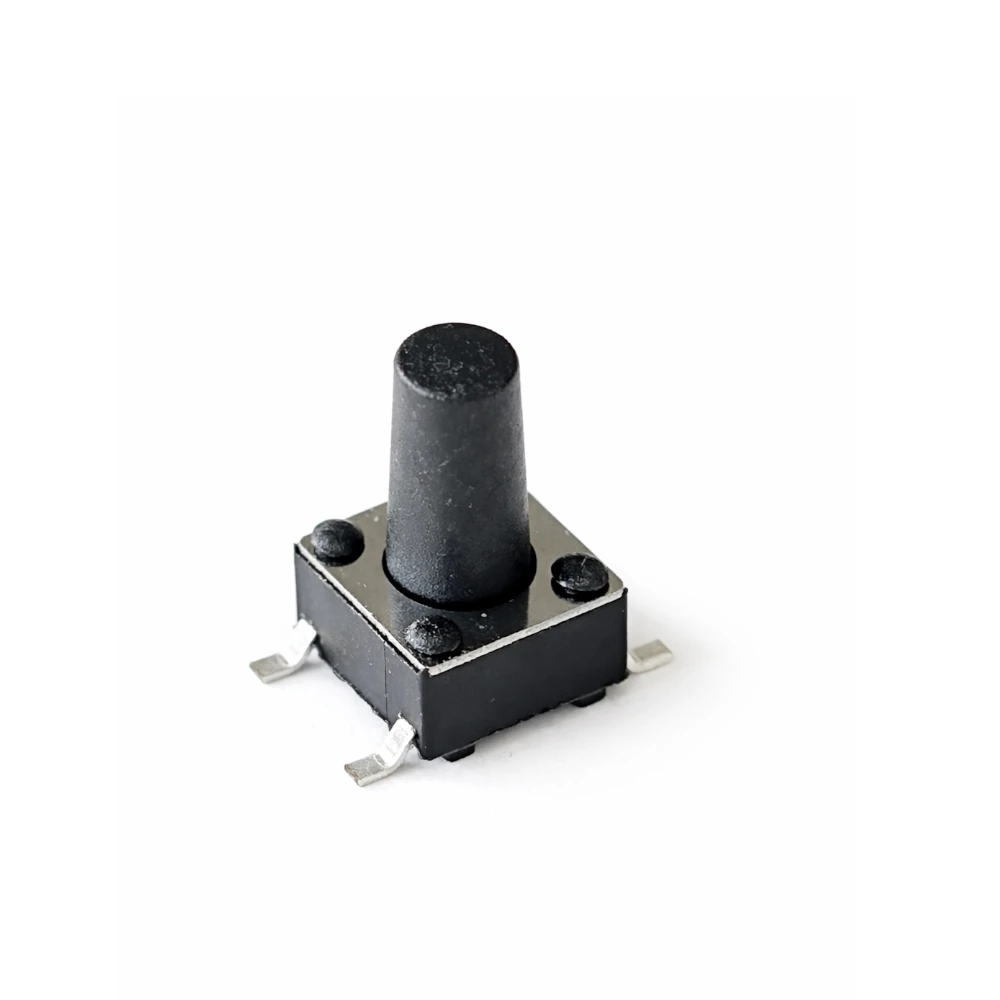

The 6x6mm Surface Mount (SMD) Tactile Switch is the modern manufacturing standard for high-volume consumer electronics. While it shares the same base dimensions as its through-hole cousin, the SMD version is engineered for Automated Assembly (Pick-and-Place) and high-density PCB designs where drilling holes isn’t an option.

Designed to sit directly on the surface of the board, these switches allow for components to be mounted on both sides of the PCB, maximizing space efficiency in sleek, modern devices.

Key Specifications

Engineering Advantages

• Space Efficiency: Since no pins pass through the board, the bottom side of the PCB remains clear for other components or traces, effectively doubling your usable design area.

• Reflow Compatibility: These switches are built with high-temperature plastics (like LCP or Nylon) to survive the intense heat of a reflow soldering oven without melting the internal dome or plunger.

• Lower Assembly Cost: For professional production, SMD switches are much faster to assemble using automated machinery compared to manual through-hole soldering.

• Low Profile: Because they sit flush on the board, they contribute to an overall thinner device profile—essential for modern “slim” electronics.

Pin Configuration & Solder Pad Layout

The 6x6mm SMD switch typically features “Gull-Wing” leads that flare out from the body.

• Stability: The flared feet provide a larger soldering surface area, ensuring the switch stays anchored even under repeated heavy presses.

• Circuitry: Like the through-hole version, it operates as an SPST (Single Pole, Single Throw). The pads are internally paired, meaning you only need to bridge one “side” to the other to complete the circuit.

Design Tip: Ensure your solder paste stencil is thick enough; because these switches are mechanical, a “weak” solder joint can lead to the switch lifting off the board over time (pad delamination).

Common Applications

• Consumer Tech: Bluetooth speakers, TV remote controls, and smart home hubs.

• Computing: Laptop power buttons and peripheral reset switches.

• IoT Devices: Compact sensors and wearables where every millimeter of PCB space counts.

• Automotive: Steering wheel controls and infotainment buttons.

Comparison: SMD vs. Through-Hole (THT)
