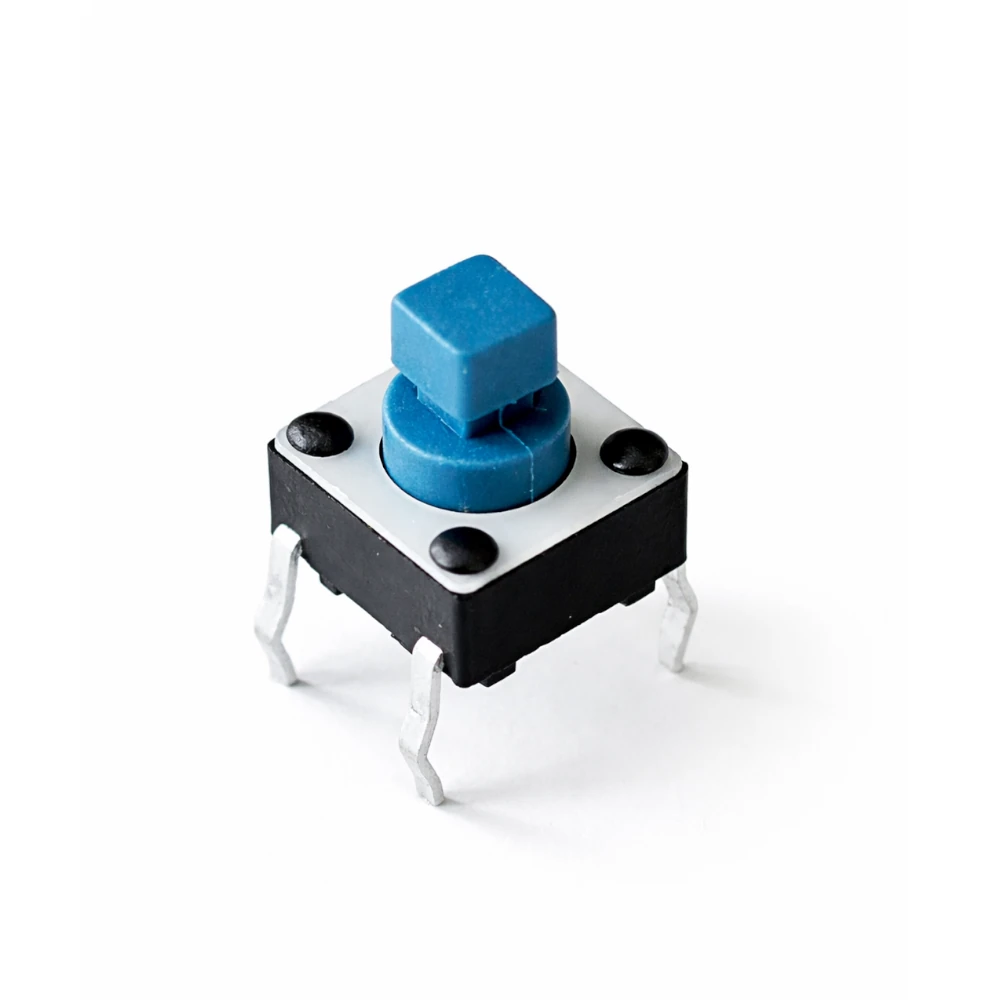

6x6x7.3mm Square Stem Tactile Switch | Standard 4-Pin for Knob & Cap Fitment

Upgrade your interface design with the 6x6x7.3mm Square Stem Tactile Switch by Pran Electronics Pvt. Ltd. Engineered for versatility, this switch features a specialized square-head plunger designed specifically for the secure mounting of external knobs, keycaps, and custom buttons.

Precision Fit for Custom Interfaces

While standard round-stem switches are great for direct finger contact, the square stem (7.3mm total height) is the gold standard for OEMs and designers who need to attach a decorative or functional cap. The square geometry provides a mechanical interlock that prevents the cap from rotating or wobbling, ensuring a premium “high-end” feel for the end-user.

Produced by Pran Electronics, this switch combines the reliability of a standard 6x6mm footprint with the structural requirements of modular control panels.

Key Specifications

Why the 7.3mm Square Stem is the Designer’s Choice:

• Anti-Rotation Stem: The square head ensures that custom-molded caps or knobs stay perfectly aligned, even with frequent use.

• Standard 7.3mm Height: Provides the perfect clearance for most thin-profile enclosures and overlay panels.

• Robust 4-Pin Stability: The four-pin DIP configuration provides a rock-solid anchor to the PCB, absorbing the downward pressure of repeated button presses.

• Crisp Tactile Feedback: Every press delivers a distinct “click,” providing the user with positive confirmation of the switch engagement.

• High-Grade Materials: Manufactured by Pran Electronics using heat-resistant plastics that withstand industrial soldering temperatures.

Common Applications

The 6x6x7.3mm square stem switch is the primary choice for:

• Industrial Instrumentation: Attaching colored caps for “Start/Stop” or “Reset” functions.

• Consumer Appliances: Microwave buttons, washing machine selectors, and coffee machine interfaces.

• Audio/Visual Equipment: Mixer consoles and DJ gear where knobs require a stable tactile base.

• Automotive Dashboards: Secure mounting for backlit plastic buttons and interior controls.

• Test & Measurement Gear: Function keys that require specific labeling via custom caps.

Engineering Tip: The 7.3mm height is specifically optimized to allow for a 1mm to 2mm thick cap while still maintaining a low-profile aesthetic on the final product housing.
