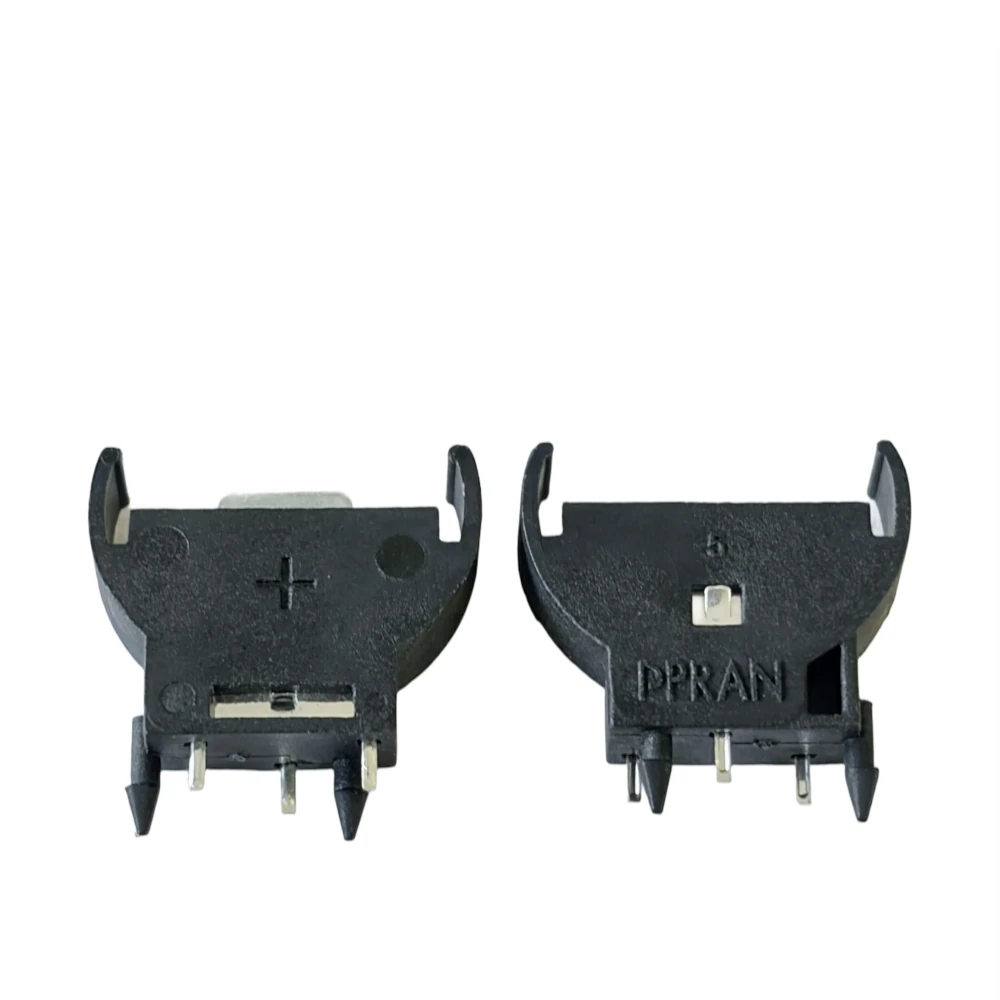

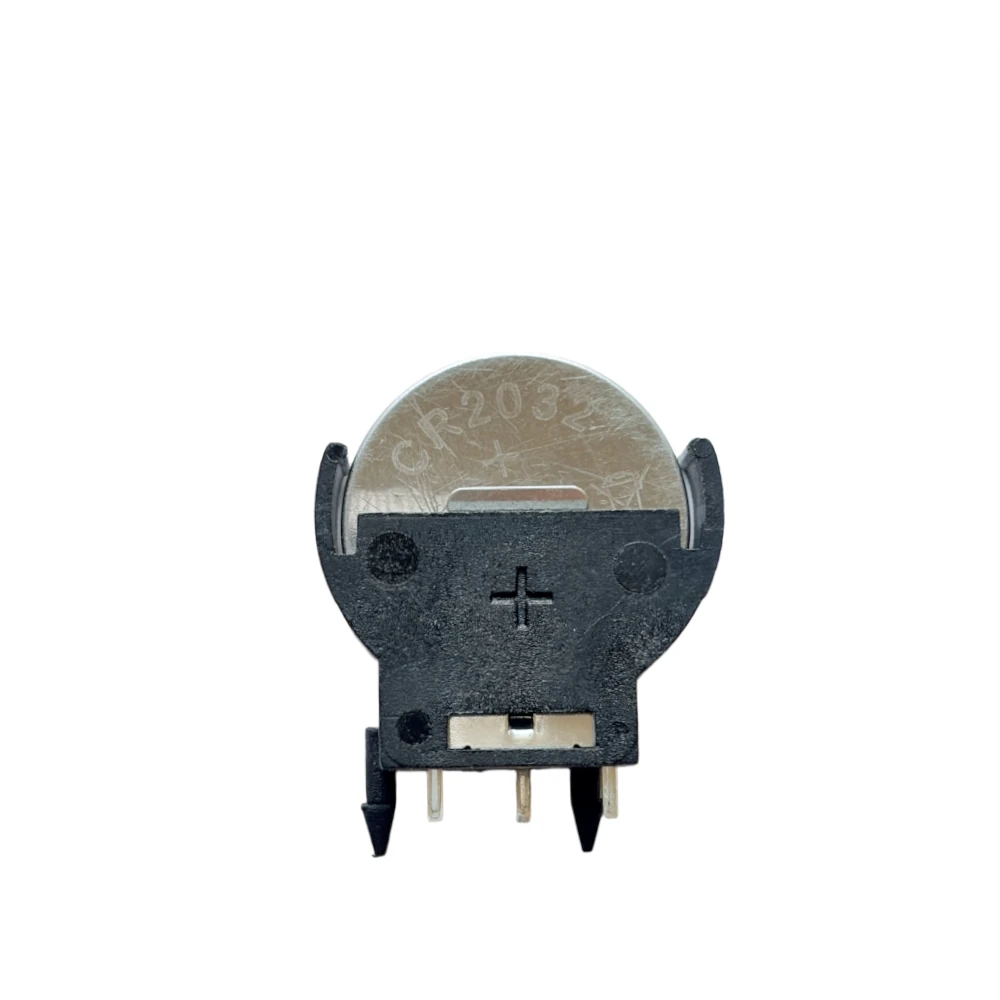

Secure Efficiency: Pran Electronics CR2032 Vertical (180°) Coin Cell Holder

When board real estate is at a premium, the Pran Electronics CR2032 Vertical Coin Cell Holder offers the ultimate solution for high-density PCB designs. This precision-engineered 180-degree holder allows the battery to stand upright, significantly reducing the horizontal footprint compared to traditional flat-mount alternatives.

Designed for reliability and longevity, this holder is the industrial standard for providing backup power to RTCs (Real-Time Clocks), non-volatile memory, and critical sensor arrays.

Key Performance Features

• Space-Optimized Vertical Mount: The 180° orientation saves up to 60% of PCB surface area, allowing for more components in compact enclosures.

• High-Integrity Contacts: Built with phosphor bronze contacts featuring premium nickel plating. This ensures superior conductivity, low contact resistance, and long-term protection against corrosion and oxidation.

• Enhanced Battery Retention: The robust “snap-in” design features tensioned contact clips that locks the battery in place, making it resistant to mechanical shock and vibration—critical for industrial and portable hardware.

• Through-Hole Durability: Equipped with sturdy PHT (Pin-Through-Hole) terminals that provide a strong mechanical bond to the PCB, ensuring the holder remains stable during battery replacements.

• Industrial Grade Insulation: Molded from high-temperature, UL 94V-0 rated thermoplastics making it compatible with modern wave soldering and lead-free processes.

Technical Specifications

Strategic Applications

The Pran Electronics CR2032 vertical holder is widely utilized in sectors requiring dependable backup power in tight spaces:

• Computing: CMOS and BIOS backup in motherboards and embedded PCs.

• IoT & Smart Home: Wireless sensors, smart locks, smart meters and security modules.

• Industrial: PLC controllers, data loggers, energy meters, and automated machinery.

• Medical: Handheld diagnostic tools and portable monitoring devices.

Why Choose Pran Electronics?

As a leading manufacturer of electromechanical components, Pran Electronics Pvt. Ltd. ensures every coin cell holder meets stringent quality benchmarks. Our vertical holders are designed for easy automated assembly and long-term field reliability.
