RJ45 8P8C Ethernet modular jack with LED and Shield PCB mounting

By /

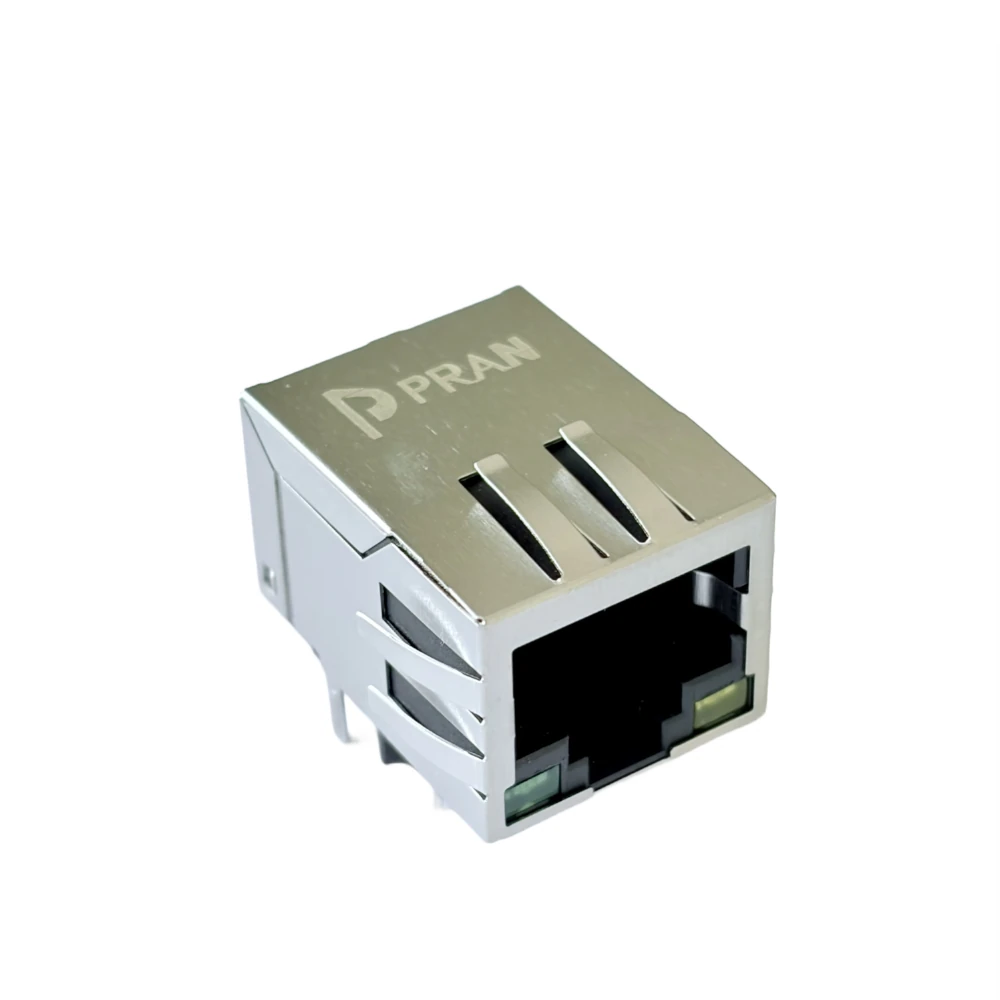

JP TS 10024-2

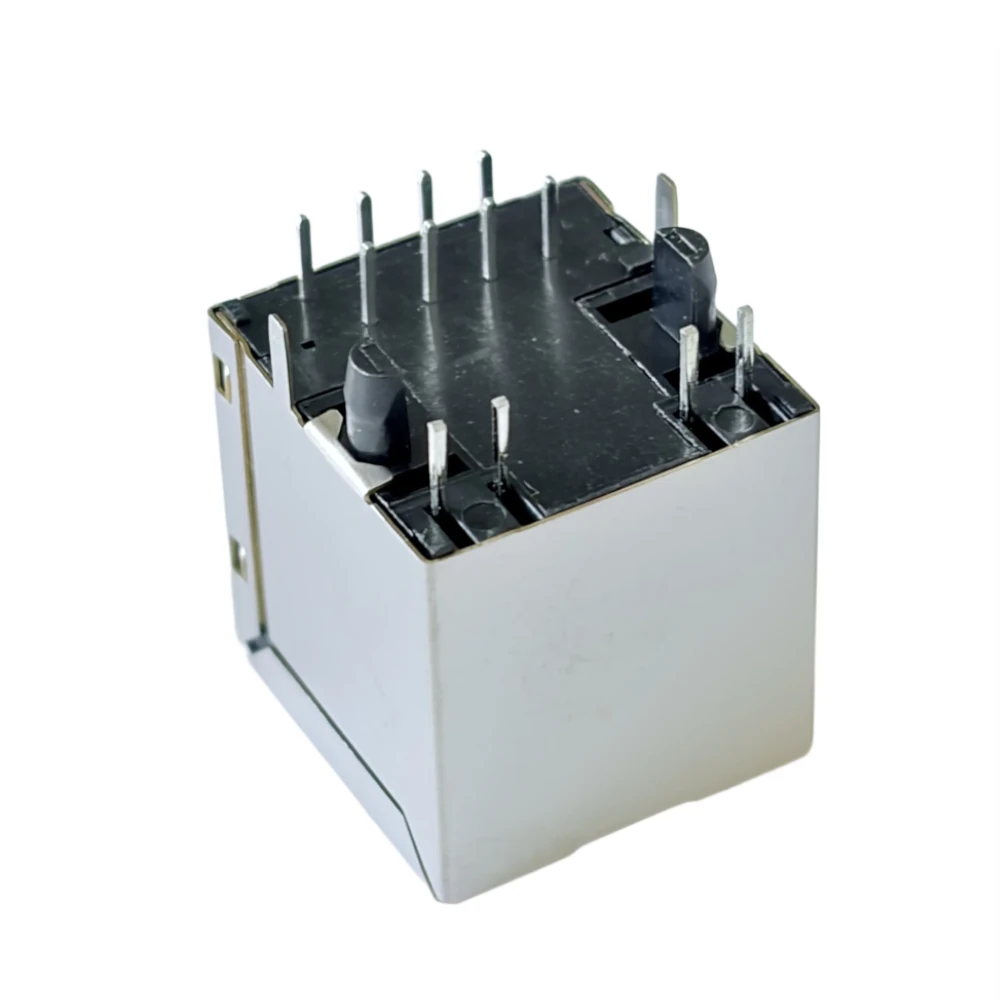

JP-TS-20003-21

RJ45 8P8C Ethernet modular jack with LED and Shield PCB mounting

Ethernet RJ45 Jack with Internal Magnetics, LEDs, and Shield (90-Degree) | Pran Electronics Pvt. Ltd.

Short description: RJ45 Ethernet shielded Magnetic jack side entry 90 degree connector

Size:
15.9×21.1×13,5mm height
Function:
RJ45 8P8C Ethernet modular jack
Rating:
1.5A 125V AC
Part code:
JP-TS-10024-2
Enquiry
Data Sheet
Category:

In the world of high-speed data networking and Industrial IoT, signal integrity and hardware protection are paramount. The 90-Degree Ethernet RJ45 Jack with Internal Magnetics (commonly known as a MagJack) by Pran Electronics Pvt. Ltd. is an all-in-one connectivity solution.

By integrating the Ethernet transformer, common-mode chokes, diagnostic LEDs, and full EMI shielding into a single 8P8C housing, this component provides a “plug-and-play” interface that ensures stable 10/100/1000 Base-T performance.

The Power of Integrated Magnetics (MagJack Technology)

Traditional Ethernet designs require discrete magnetic components on the PCB, which consume space and can introduce signal noise. The Pran Integrated Magnetic RJ45 solves these challenges:

  • Superior Signal Conditioning: Internal magnetics filter out Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring error-free data transmission even in noisy industrial environments.

  • High-Voltage Isolation: Provides essential galvanic isolation (typically 1500V AC) between the external network cable and the sensitive PHY chip/microcontroller on your PCB.

  • PCB Space Optimization: By eliminating the need for separate transformers and chokes, you significantly reduce your board’s footprint and simplify trace routing.

Advanced Shielding and Visual Diagnostics

  • 306 degree EMI Shielding: Encased in a robust, nickel-plated brass shield with multiple grounding tabs. This ensures a low-impedance path to the ground plane, protecting your system from electrostatic discharge (ESD) and external noise.

  • Integrated Status LEDs: Built-in high-visibility LEDs (Green/Yellow) provide real-time feedback on Link Status, Speed, and Network Activity, facilitating rapid field troubleshooting.

  • 90-Degree (Right Angle) Design: The side-entry profile is optimized for horizontal PCB mounting, making it ideal for low-profile rack-mount servers, routers, and slimline industrial controllers.

Key Product Features

  • Standard 8P8C Interface: Fully compatible with Cat5e and Cat6 Ethernet cables.

  • Gold-Plated Contacts: Selective gold plating over nickel ensures maximum conductivity and prevents oxidation over thousands of mating cycles.

  • High-Temperature Construction: Molded from UL 94V-0 rated thermoplastic, capable of withstanding industrial operating temperatures and standard wave/reflow soldering.

  • Make in India: Manufactured by Pran Electronics Pvt. Ltd., providing world-class quality with the benefits of localized supply chain and technical support.

Technical Specifications

Feature Specification
Connector Type RJ45 with Integrated Magnetics (MagJack)
Data Rate Supports 10/100 Base-T or Gigabit (10/100/1000)
Orientation 90-Degree / Right Angle / Side Entry
Isolation Voltage 1500 V AC (Minimum)
LED Indicators Integrated (Green, Yellow, or Orange options)
Shielding Full Metal Shield with Grounding Tabs
Contact Plating Gold Plating over Nickel
Compliance RoHS and REACH Compliant

Primary Applications

The Pran Magnetic RJ45 is the industry standard for mission-critical data hardware:

  1. Industrial Automation: Ethernet-IP enabled PLCs, motor drives, and industrial gateways.

  2. Smart Metering & AMI: Data Concentrator Units (DCUs) requiring rugged, isolated communication ports.

  3. Networking Infrastructure: High-performance routers, managed switches, and server NICs.

  4. Security & Surveillance: NVRs and PoE (Power over Ethernet) equipment requiring grounded ports.

  5. IoT & Embedded Systems: Edge computing nodes and single-board computers (SBCs).

Why Source from Pran Electronics?

Pran Electronics Pvt. Ltd. is an ISO-certified leader in the Indian electronics landscape. Choosing their magnetic RJ45 jacks ensures:

  • Precision Engineering: Every batch is tested for electrical isolation, return loss, and crosstalk to meet IEEE 802.3 standards.

  • Regulatory Compliance: Designed to help your end-product pass stringent CE and FCC electromagnetic compatibility (EMC) testing.

  • Localized Logistics: Faster lead times and direct engineering support for custom pinout requirements.
